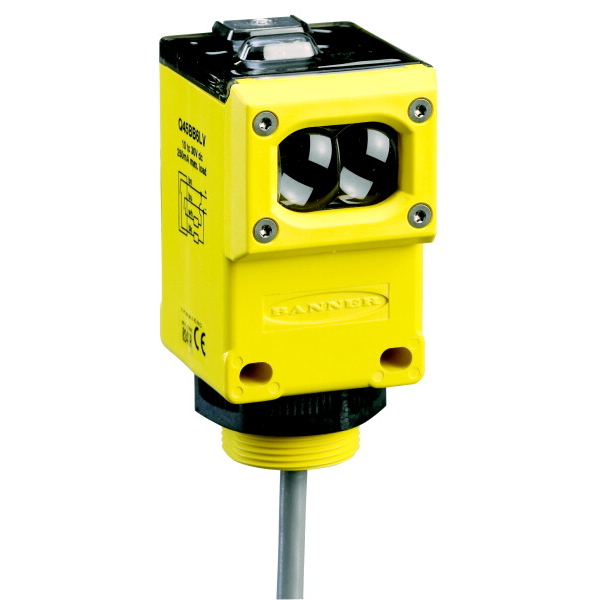

Q45BW22RQ1 BANNER ⍾ 40221

Q45 Series Rugged Rectangle Sensor; Q45 Series: Receiver Range: 60 m; Input: 90-250 V ac Output: SPST Solid-state Relay Micro 4-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 60000; Outputs : Solid-State AC Switch; Quick Disconnect Type : 1/2 in. (Micro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 2 ON/1 OFF; Repeatability (µs) : 250; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Receiver; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes

Type

Q45

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

AC

Power supply

90-250 V ac

Indicator

LEDs

Degree of protection

IP67
