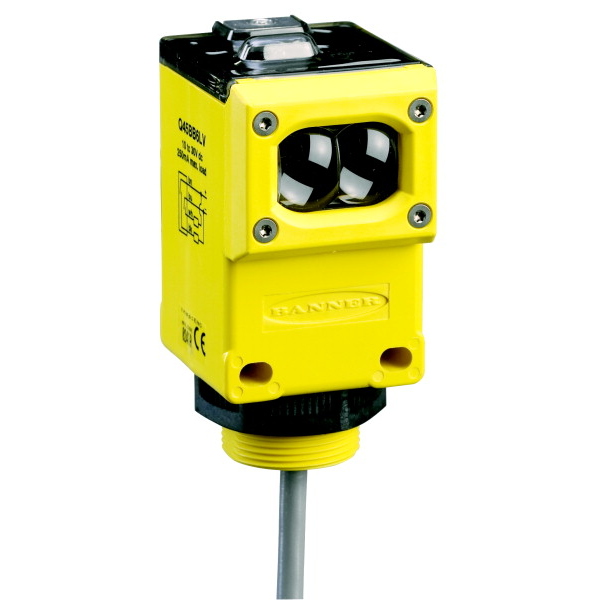

Q45BB6LL BANNER ⍾ 37248

Q45 Series Rugged Rectangle Sensor; Q45 Series: Laser Retro Range: 0.3 - 70 m; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Non-Polarized; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Small Visible Spot : Laser; Laser Classification : Class 2; Input/Output : Discrete; Max Sensing Distance (mm) : 70000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -10; Max Op. Temp. (°C) : 40; Output response time (ms) : 2; Repeatability (µs) : 500; Number of Pins : 5; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 30; Feature: Timing (Hold/Delay) : Yes

Type

Q45

Lens material

Acrylic

Sensing beam

Visible Red Laser

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
