Q453EQ BANNER ⍾ 54328

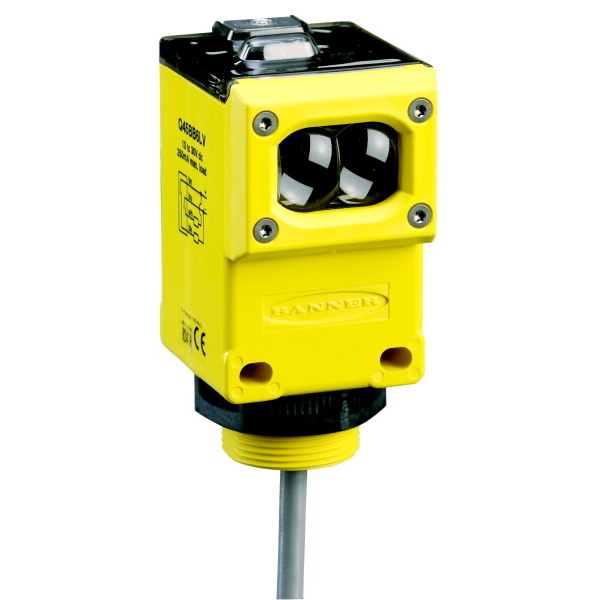

Q45 Series Rugged Rectangle Sensor; Q45 Series: Emitter Range: 60 m; Input: 12-250 V dc or 24-250 V ac Output: Not applicable - No outputs Mini 3-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 60000; Quick Disconnect Type : 7/8 in. (Mini); Min Op. Temp. (°C) : -25; Max Op. Temp. (°C) : 55; Repeatability (µs) : 250; Number of Pins : 3; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Emitter; Feature: Quick Disconnect : Yes

Type

Q45

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Integral QD

Power supply type

AC/DC Universal

Power supply

12-250 V dc or 24-250 V ac

Indicator

LEDs

Degree of protection

IP67
