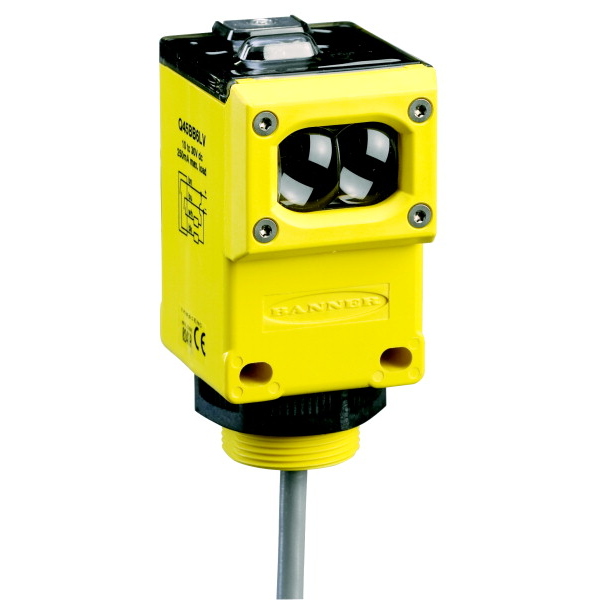

Q452EQ1 BANNER ⍾ 40222

Q45 Series Rugged Rectangle Sensor; Q45 Series: Emitter Range: 60 m; Input: 90-250 V ac Output: Not applicable - No outputs Micro 4-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 60000; Quick Disconnect Type : 1/2 in. (Micro); Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Repeatability (µs) : 250; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Emitter; Feature: Quick Disconnect : Yes

Type

Q45

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Integral QD

Power supply type

AC

Power supply

90-250 V ac

Indicator

LEDs

Degree of protection

IP67
