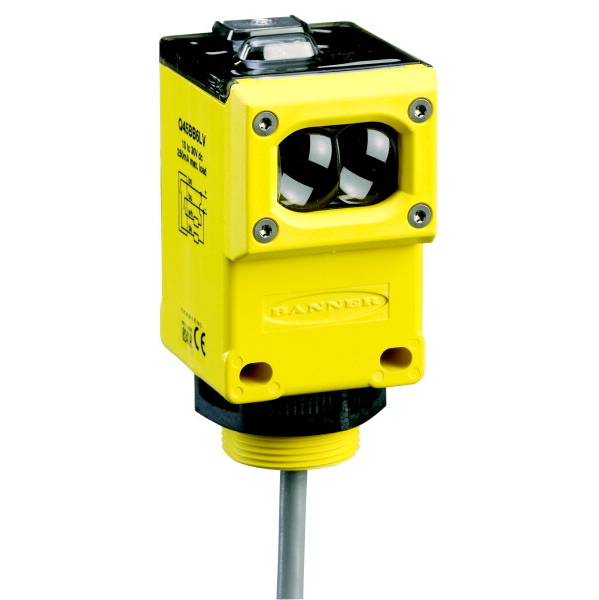

Q452E W/30 BANNER ⍾ 38462

Q45 Series Rugged Rectangle Sensor; Q45 Series: Emitter Range: 60 m; Input: 90-250 V ac Output: Not applicable - No outputs 9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 60000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Repeatability (µs) : 250; Number of Pins : 2; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Emitter

Type

Q45

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Cable

Power supply type

AC

Power supply

90-250 V ac

Indicator

LEDs

Degree of protection

IP67
