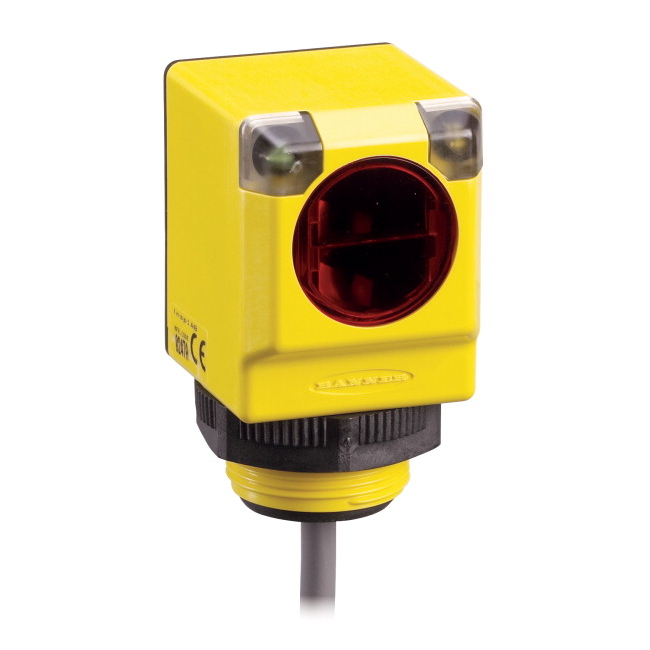

Q40SN6FF200 W/30 BANNER33901

Q40 Series 60 m Range Harsh Environment Sensor; EZ-BEAM Q40 Series: Fixed Field Range: 200 mm; Input: 10-30 V dc Output: Complementary NPN9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 200; Outputs : NPN; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 3; Repeatability (µs) : 750; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Health/ Marginal Signal Output : Yes

Lens material
Polycarbonate
Sensing beam
Infrared LED
Connection
Cable
Typical response time
100 ms
Power supply type
DC
Power supply
10-30 V dc
Indicator
LEDs
Degree of protection
IP67
