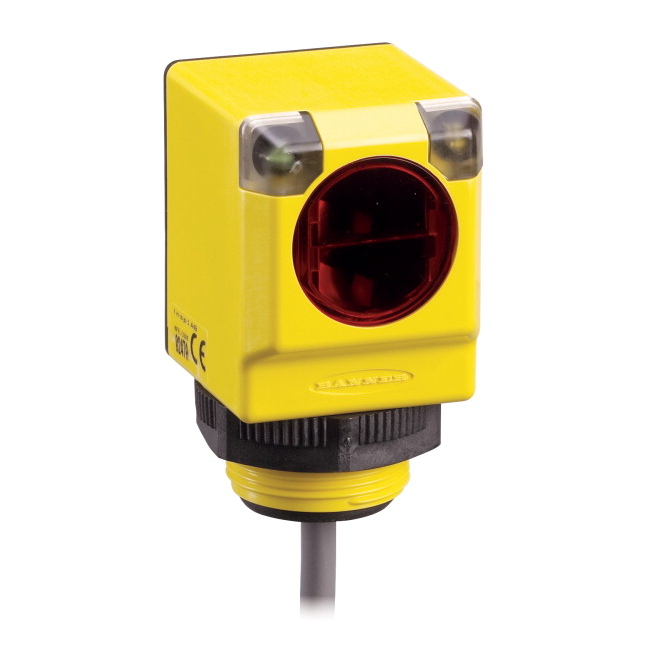

Q40RW3RE BANNER ⍾ 37105

This product has been marked as discontinued. Please ask for availability or replacement.

Q40 Series 60 m Range Harsh Environment Sensor; EZ-BEAM Q40 Series: Receiver/Emitter Opposed Range: 60 m; Input: 20-250V ac Output: Dark Operate Receiver 2 m Cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter/Receiver Pair; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 60000; Outputs : Solid-State AC Switch; Quick Disconnect Type : No QD; Operation : Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16 ON/8 OFF; Repeatability (µs) : 2000; Number of Pins : 3; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Pair; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes

Type

Q40

Lens material

Polycarbonate

Sensing beam

Infrared LED

Connection

Cable

Typical response time

100 ms

Power supply type

AC

Power supply

20-250 V ac

Indicator

LEDs

Degree of protection

IP67
