Q40AW3FF600 BANNER ⍾ 32371

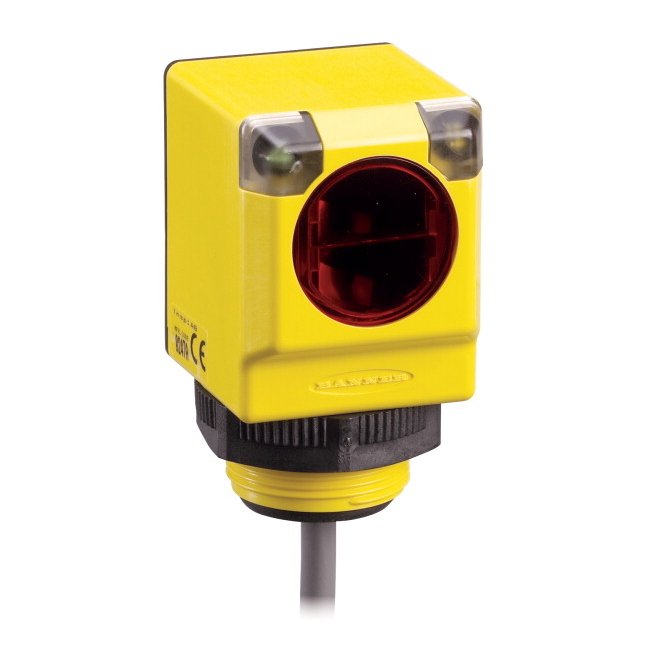

Q40 Series 60 m Range Harsh Environment Sensor; EZ-BEAM Q40 Series: Fixed Field Range: 600 mm; Input: 20-250V ac Output: SPST Solid-state Light Operate 2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 600; Outputs : Solid-State AC Switch; Quick Disconnect Type : No QD; Operation : Light Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16; Repeatability (µs) : 4000; Number of Pins : 3; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes
- Lens material
- Polycarbonate
- Sensing beam
- Infrared LED
- Connection
- Cable
- Typical response time
- 100 ms
- Power supply type
- AC
- Power supply
- 20-250 V ac
- Indicator
- LEDs
- Degree of protection
- IP67
