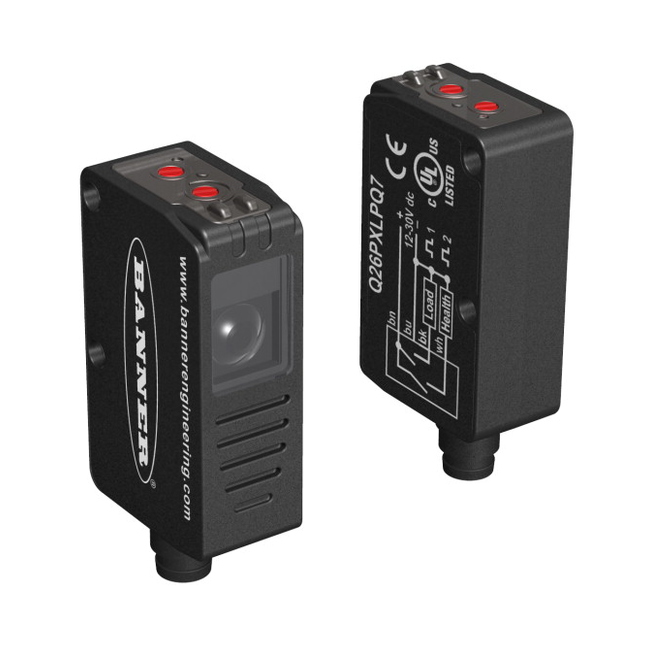

Q26PXLPQ7 BANNER ⍾ 17129

Q26 Series Clear Object Sensor; Q26 Series Clear Object Sensor Range 0-0.8 m; Supply Voltage 12-30 V dc; Rating IP67 PNP Outputs; Coaxial Optics Visible Red LEDPico M8 4-pin Connector; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized (Coaxial); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 800; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -10; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 0.25; Sensing Beam Wavelength : 660; Repeatability (µs) : 50; Number of Pins : 4; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Feature: Clear Object Detection : Yes; Feature: Quick Disconnect : Yes; Feature: Health/ Marginal Signal Output : Yes

Type

Q26

Lens material

Glass

Sensing beam

Visible Red LED

Connection

Integral QD

Power supply type

DC

Power supply

12-30 V dc

Indicator

LEDs

Degree of protection

IP67
