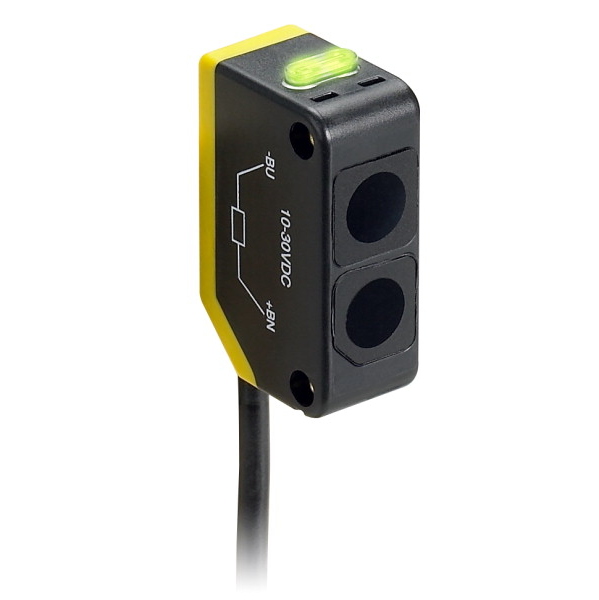

Q20PRLQ5 BANNER ⍾ 78280

Q20 Series Industry Standard Global Housing; WORLD-BEAM Q20 Series: Long Range Receiver (IR)Range: 20 m; Input 10-30V dc Output: Complementery Solid State PNP6 in pigtail Euro-style Quick Disconnect Connector; Cable Length (m) : 0.15; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 20000; Outputs : PNP; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 60; Output response time (ms) : 1 ON/0.6 OFF; Repeatability (µs) : 140; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Opposed Mode Emitter/Receiver : Receiver; Feature: Quick Disconnect : Yes

Type

Q20

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Pigtail QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
