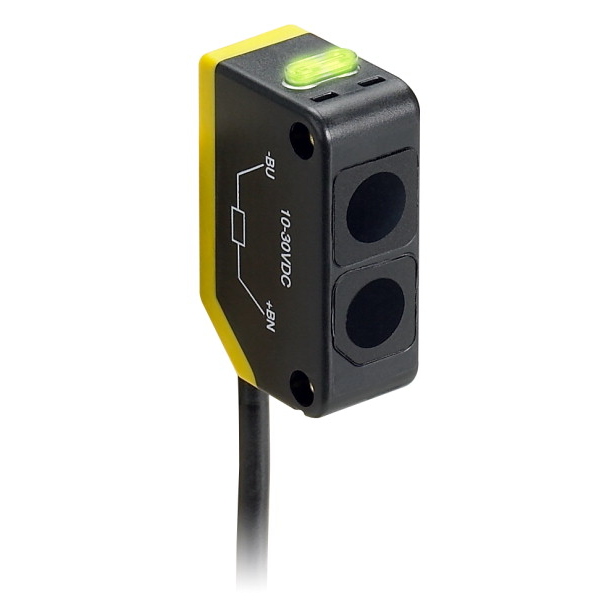

Q20PLVQ BANNER ⍾ 78215

Q20 Series Industry Standard Global Housing; WORLD-BEAM Q20 Series: Retro Range: 6 m; Input 10-30V dc Output: Complementery Solid State PNP6 in pigtail Pico-style Quick Disconnect Connector; Cable Length (m) : 0.15; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Non-Polarized; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 6000; Outputs : PNP; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 60; Output response time (ms) : 0.8; Sensing Beam Wavelength : 645; Repeatability (µs) : 155; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Potentiometer; Feature: Quick Disconnect : Yes

Type

Q20

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
