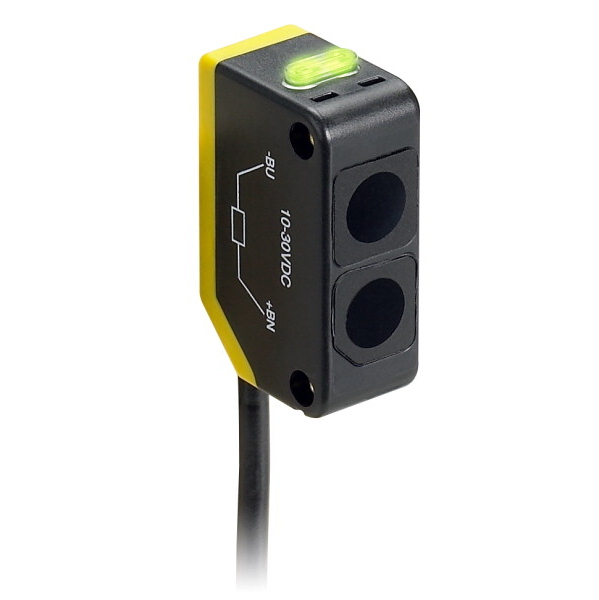

Q20NLPQ BANNER ⍾ 78214

Q20 Series Industry Standard Global Housing; WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m; Input 10-30V dc Output: Complementery Solid State NPN6 in pigtail Pico-style Quick Disconnect Connector; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 4000; Outputs : NPN; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 60; Output response time (ms) : 0.8; Sensing Beam Wavelength : 645; Repeatability (µs) : 155; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Potentiometer; Feature: Quick Disconnect : Yes

Type

Q20

Connection

Pigtail QD

Typical response time

100 ms

Degree of protection

IP67
