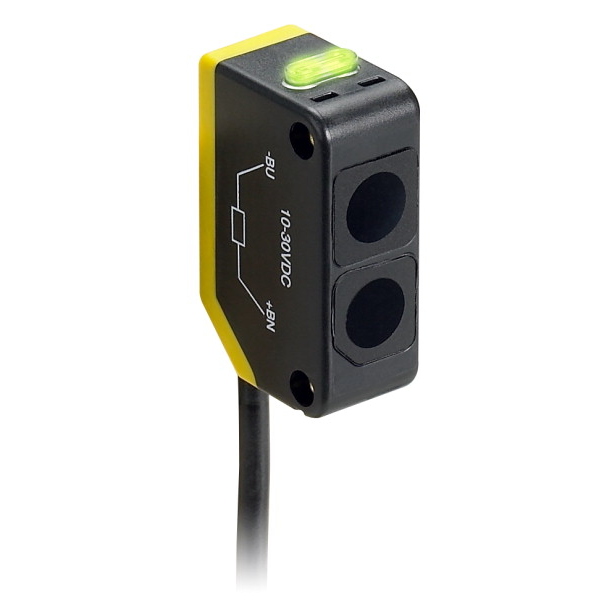

Q20NFF100Q5 BANNER ⍾ 78200

Q20 Series Industry Standard Global Housing; WORLD-BEAM Q20 Series: Fixed-Field Range: 100 mm; Input 10-30 V dc Output: Complementery Solid State NPNEuro 4-pin 6 in Pigtail QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Small Visible Spot : LED; Input/Output : Discrete; Max Sensing Distance (mm) : 100; Outputs : NPN; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 60; Output response time (ms) : 0.8; Sensing Beam Wavelength : 655; Repeatability (µs) : 155; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Feature: Quick Disconnect : Yes

Type

Q20

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
