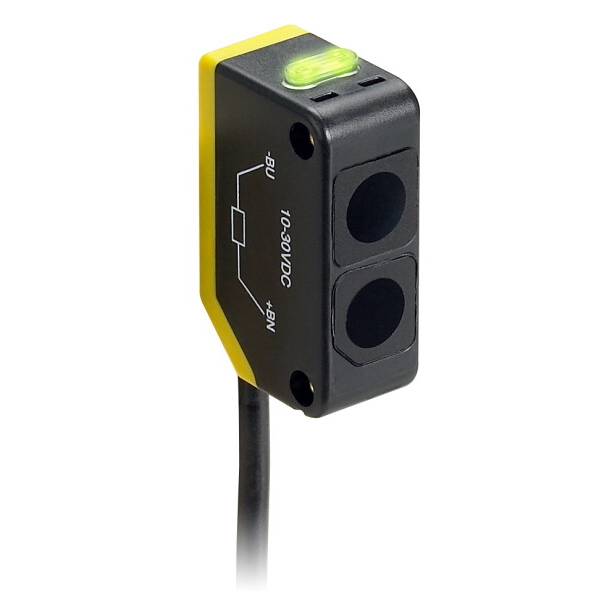

Q20NDQ7 BANNER ⍾ 77760

Q20 Series Industry Standard Global Housing; WORLD-BEAM Q20 Series: Diffuse (Red)Range: 250 mm; Input 10-30V dc Output: Complementery Solid State NPNIntegral Pico-Style Quick-Disconnect Connector; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Diffuse; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 250; Outputs : NPN; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 60; Output response time (ms) : 0.8; Sensing Beam Wavelength : 655; Repeatability (µs) : 155; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Potentiometer; Feature: Quick Disconnect : Yes

Type

Q20

Connection

Integral QD

Typical response time

100 ms

Degree of protection

IP67
