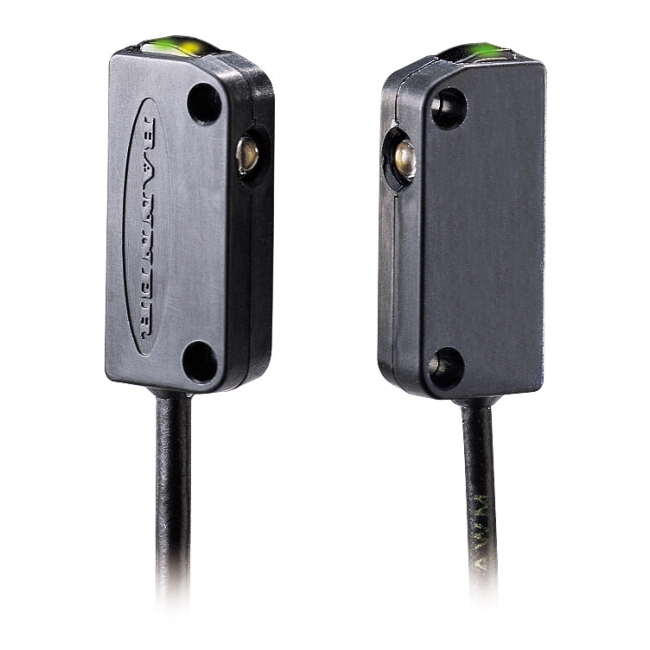

Q14AP6R W/30 BANNER ⍾ 49511

This product has been marked as discontinued. Please ask for availability or replacement.

Q14 Series; Q14 Series: Receiver Range: 1.8 m; Input: 10-30 V dc Output: Light Operate - PNP9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 1800; Outputs : PNP; Quick Disconnect Type : No QD; Operation : Light Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 8 ON/4 OFF; Sensing Beam Wavelength : 880; Repeatability (µs) : 1000; Number of Pins : 3; NEMA Rating : NEMA 4; Max Op. Relative Humidity [%] : 90% @ 50°C; Opposed Mode Emitter/Receiver : Receiver

Type

Q14

Lens material

Glass

Sensing beam

Infrared LED

Connection

Cable

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP54
