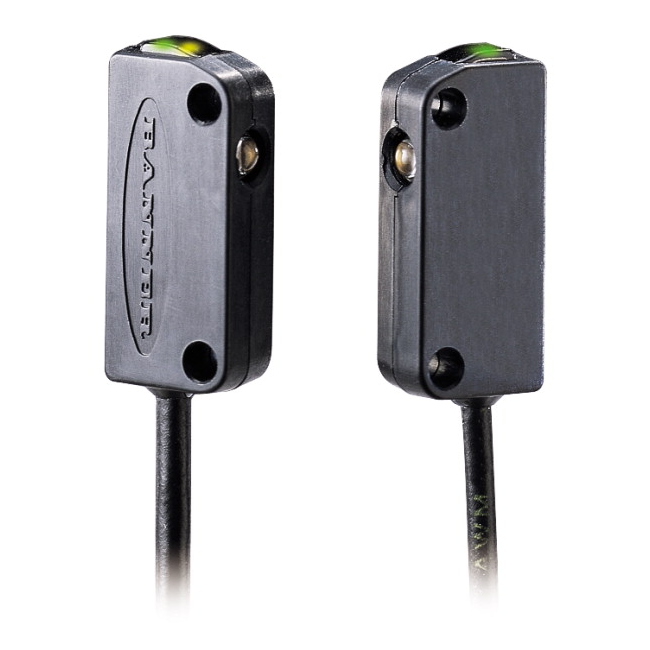

Q14AN6RQ BANNER ⍾ 45732
Q14 Series; Q14 Series: Receiver Range: 1.8 m; Input: 10-30V dc Output: Light Operate - NPN6 in Pigtail QD Connector; Cable Length (m) : 0.15; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 1800; Outputs : NPN; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Operation : Light Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 8 ON/4 OFF; Sensing Beam Wavelength : 880; Repeatability (µs) : 1000; Number of Pins : 3; NEMA Rating : NEMA 4; Max Op. Relative Humidity [%] : 90% @ 50°C; Opposed Mode Emitter/Receiver : Receiver; Feature: Quick Disconnect : Yes
- Lens material
- Glass
- Sensing beam
- Infrared LED
- Connection
- Pigtail QD
- Power supply type
- DC
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP54
