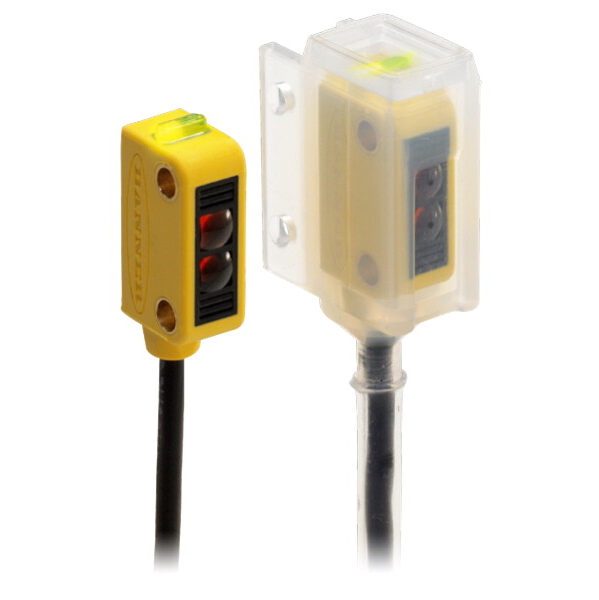

Q12RB6RQ BANNER ⍾ 72138

Q12 Series Miniature Self-Contained Sensor; WORLD-BEAM Q12 Series: Opposed Range: 2 m; Input: 10-30V dc Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNPPico (M8) Threaded Pigtail QD; Cable Length (m) : 0.15; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 2000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Operation : Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 1.3 ON/0.7 OFF; Sensing Beam Wavelength : 640; Repeatability (µs) : 175; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 50°C; Opposed Mode Emitter/Receiver : Receiver; Feature: Quick Disconnect : Yes

Type

Q12

Lens material

Polycarbonate

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

120 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
