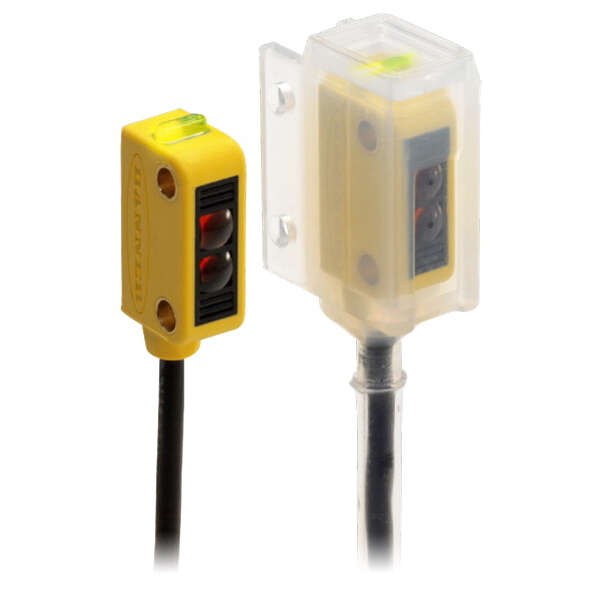

Q12RB6LV BANNER ⍾ 72125

Q12 Series Miniature Self-Contained Sensor; WORLD-BEAM Q12 Series: Retroreflective Range: 1.5 m; Input: 10-30V dc Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNP2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Non-Polarized; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 1500; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Operation : Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 0.7; Sensing Beam Wavelength : 640; Repeatability (µs) : 175; Number of Pins : 3; Max Op. Relative Humidity [%] : 95% @ 50°C

Type

Q12

Lens material

Polycarbonate

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

120 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
