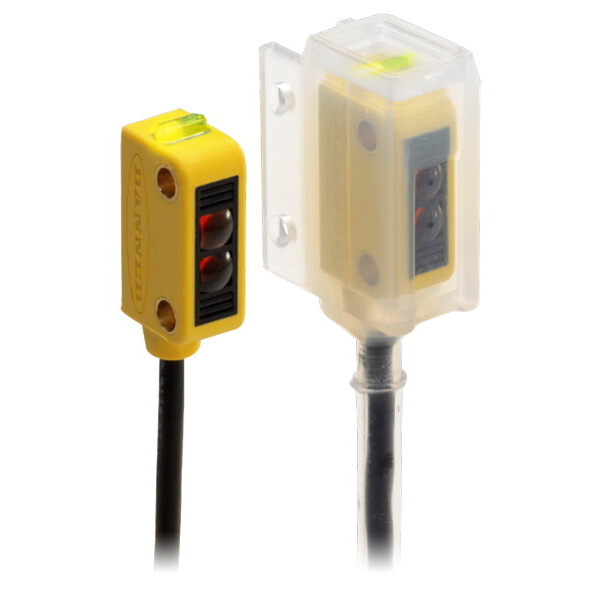

Q12AB6LPQ BANNER ⍾ 72129

Q12 Series Miniature Self-Contained Sensor; WORLD-BEAM Q12 Series: Polarized Retro Range: 1 m; Input: 10-30V dc Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNPPico (M8) Threaded Pigtail QD; Cable Length (m) : 0.15; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 1000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Operation : Light Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 0.7; Sensing Beam Wavelength : 640; Repeatability (µs) : 175; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 50°C; Feature: Quick Disconnect : Yes

Type

Q12

Lens material

Glass

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

120 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
