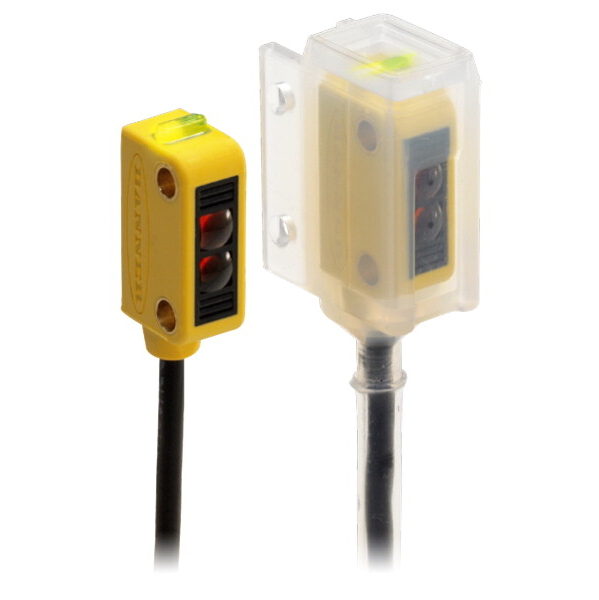

Q126E BANNER ⍾ 72140

Q12 Series Miniature Self-Contained Sensor; WORLD-BEAM Q12 Series: Emitter Range: 2 m; Input 10-30V dc Output: Not applicable - No outputs 2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 2000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1.3 ON/0.7 OFF; Sensing Beam Wavelength : 640; Repeatability (µs) : 175; Number of Pins : 2; Max Op. Relative Humidity [%] : 95% @ 50°C; Opposed Mode Emitter/Receiver : Emitter

Type

Q12

Connection

Cable

Typical response time

120 ms

Degree of protection

IP67
