Q126E W/30 BANNER ⍾ 72142

This product has been marked as discontinued. Please ask for availability or replacement.

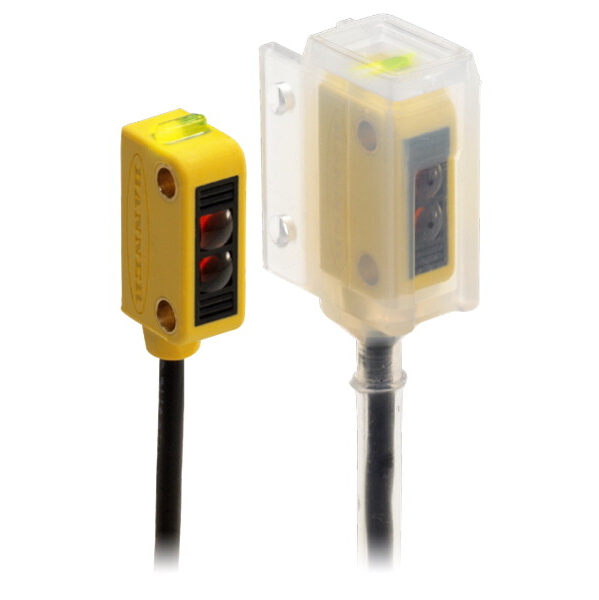

Q12 Series Miniature Self-Contained Sensor; WORLD-BEAM Q12 Series: Emitter Range: 2 m; Input 10-30V dc Output: Not applicable - No outputs 9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 2000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1.3 ON/0.7 OFF; Sensing Beam Wavelength : 640; Repeatability (µs) : 175; Number of Pins : 2; Max Op. Relative Humidity [%] : 95% @ 50°C; Opposed Mode Emitter/Receiver : Emitter

Type

Q12

Lens material

Polycarbonate

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

120 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
