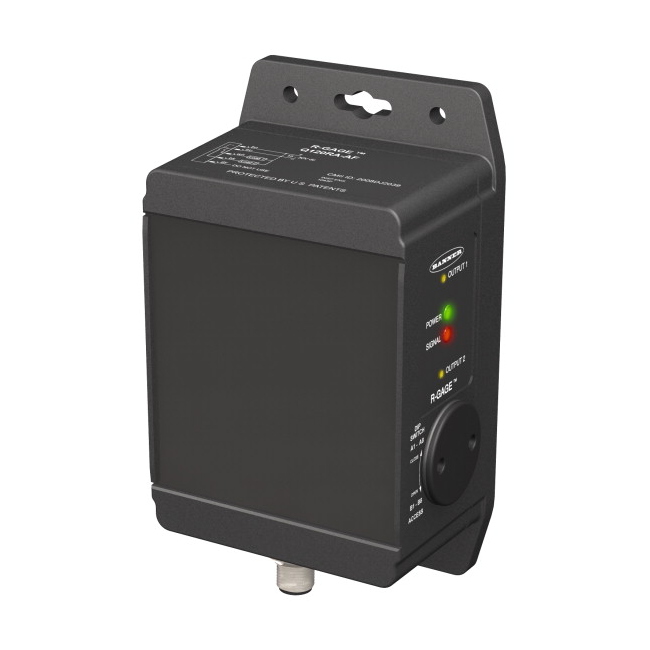

Q120RA-EU-AF2 BANNER ⍾ 25374

Q120R Series Narrow Beam (24° x 50°) Radar Sensor; R-GAGE Series Radar Sensor Bipolar Outputs Range 2.0 to 40 Meters Response Speed 40ms 2 m Cable; Max Measurement Range : >20 m - <=50 m; Cable Length (m) : 2; Operating Frequency : 24 GHz; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Time of Flight; Housing Style : Rectangular; Device Type : Sensor; Primary Housing Material : ABS/Polycarbonate; Input/Output : Discrete; Radar Beam Pattern (H x V °) : 24 x 50; Quick Disconnect Type : No QD; Max Sensing Distance (mm) : 40000; Minimum Sensing Distance (mm) : 2000; Power Supply : 12-30 V dc; Adjustments : Dip Switch; Number of Pins : 5; Max Discrete (Switched) Output (mA) : 150; Discrete (Switched) Outputs : 2 NPN/PNP Configurable; Output Protection : Protected against short circuit; Max Operating Temperature (°C) : 65; Min Operating Temperature (°C) : -40; Minimum Response Time (ms) : 15; Power/Current Consumption (exclusive of load) : < 100 mA; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Cert: Australia/New Zealand : Yes; Cert: China : Yes; Cert: European : Yes; Cert: Japan : Yes

Type

Q120R

Connection

Flying Leads

Sensing beam

Radar

Typical response time

2000 ms

Power supply type

DC

Indicator

LED(s)

Degree of protection

IP67
