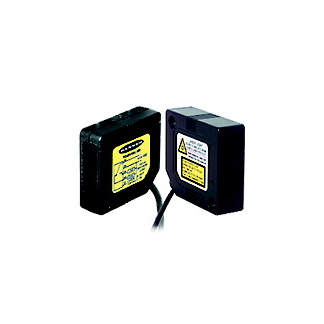

PD45VN6LLPQ BANNER ⍾ 58619

PicoDot PD Series; Pico Dot: Polarized Retro Laser Range: depends on reflector; Input: 10-30V dc Outputs: Complementary NPN6 in Pigtail QD Connector; Cable Length (m) : 0.15; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Laser Classification : Class 2; Small Visible Spot : Laser; Input/Output : Discrete; Max Sensing Distance (mm) : 10600; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -10; Max Op. Temp. (°C) : 45; Output response time (ms) : 0.2; Sensing Beam Wavelength : 650; Repeatability (µs) : 50; Number of Pins : 5; NEMA Rating : NEMA 3; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Feature: Quick Disconnect : Yes

Type

PD45

Lens material

Acrylic

Sensing beam

Visible Red Laser

Connection

Pigtail QD

Typical response time

1000 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP54
