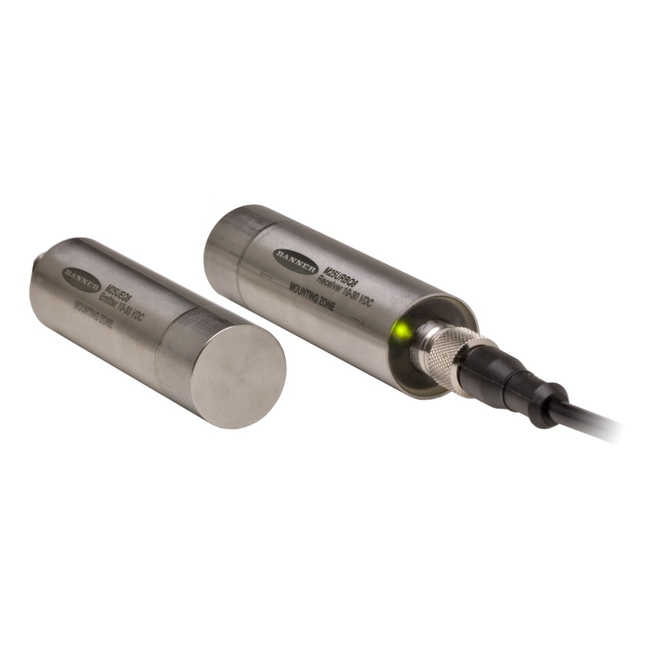

M25URBQ8 BANNER ⍾ 79746

M25U Series Stainless Steel IP69K Ultrasonic Sensor; M25U Series Ultrasonic Receiver Range: 500 mm (Normal Speed); 250 mm (High Speed); Input: 10-30V dc Rating: IP69K; Output: Bipolar (1 NPN & 1 PNP)5-pin Euro Style QD; Max Measurement Range : >100 mm - <=500 mm; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Barrel; Device Type : Sensor; Primary Housing Material : Stainless Steel; Input/Output : Discrete; Quick Disconnect Type : M12 (Euro); Max Sensing Distance (mm) : 500; Power Supply : 10-30 V dc; Number of Pins : 5; Vibration : MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).; Mechanical Shock : IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave; Output Saturation Voltage NPN Outputs : < 1.6 V at 100 mA; Output Saturation Voltage PNP Outputs : < 3 V at 100 mA; Max Discrete (Switched) Output (mA) : 100; Discrete (Switched) Outputs : Bipolar (NPN & PNP); Output Protection : Protected against short circuit conditions; NEMA Rating : NEMA 6; Max Operating Temperature (°C) : 70; Min Operating Temperature (°C) : -20; Max Op. Relative Humidity Non-Condensing (%) : 95 at 50°C; Minimum Response Time (ms) : 3; Barrel Diameter (mm) : 25; Ultrasonic Frequency (kHz) : 140; Max Off-state Leakage Current (µA) : NPN: < 200; PNP: < 10; Power/Current Consumption (exclusive of load) : 38 mA; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Feature: Clear Object Detection : Yes; Feature: Ecolab Certified : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes; Application: Ultrasonic : Yes

Type

M25U

Connection

Integral QD

Sensing beam

Ultrasonic

Typical response time

250 ms

Power supply type

DC

Indicator

LED(s)

Degree of protection

IP67; IP69
