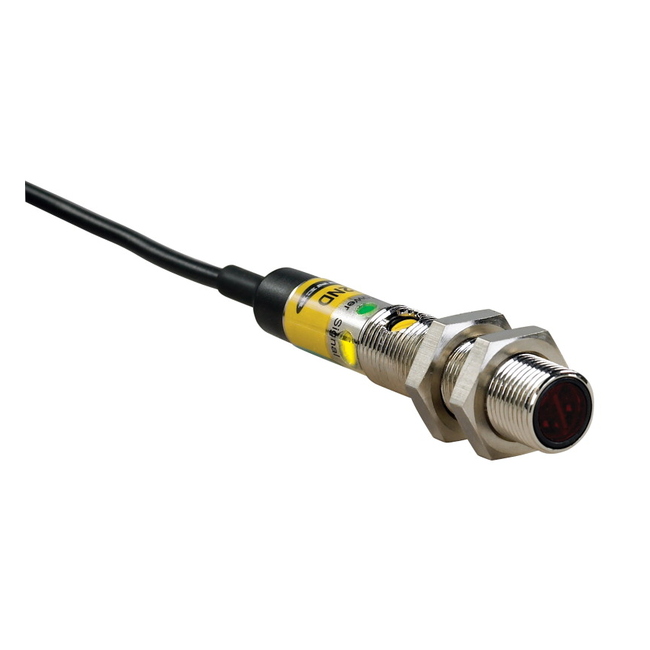

M12NLV BANNER ⍾ 77188

M12 Series Metal 12mm Barrel-Mount Sensor; M12 Series: Retro (Red)Range: 2.5 m; Input 10-30V dc Output: Complementery Solid State NPN2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Non-Polarized; Housing Style : Barrel; Primary Housing Material : Nickel-Plated Brass; Input/Output : Discrete; Max Sensing Distance (mm) : 2500; Outputs : NPN; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 60; Output response time (ms) : 0.5; Sensing Beam Wavelength : 660; Repeatability (µs) : 95; Number of Pins : 4; NEMA Rating : NEMA 5, 6 and 1200 PSI Washdown; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 12; Feature: Washdown Rated : Yes; Feature: Encapsulated : Yes

Type

Photoelectric Sensors

Lens material

PMMA

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67, IP68
