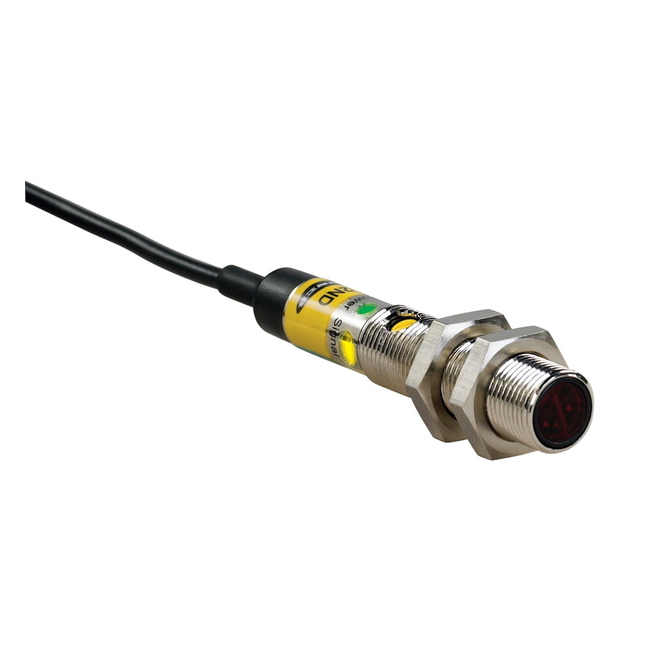

M12E W/30 BANNER ⍾ 77216

M12 Series Metal 12mm Barrel-Mount Sensor; M12 Series: Emitter Range: 5 m; Input 10-30 V dc Output: No output 9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Barrel; Primary Housing Material : Nickel-Plated Brass; Max Sensing Distance (mm) : 5000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 60; Output response time (ms) : 0.625 ON/0.375 OFF; Sensing Beam Wavelength : 660; Number of Pins : 4; NEMA Rating : NEMA 5, 6 and 1200 PSI Washdown; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 12; Opposed Mode Emitter/Receiver : Emitter; Feature: Washdown Rated : Yes; Feature: Encapsulated : Yes

Type

Photoelectric Sensors

Lens material

PMMA

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67, IP68
