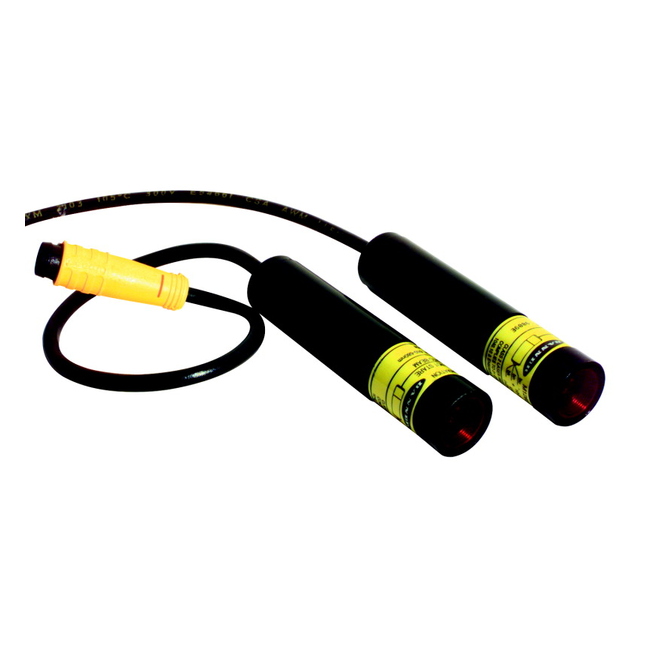

M126E2LDQ BANNER ⍾ 53801

M12 Aluminum Barrel Laser Emitter; M12 Laser: Class 2 Emitter Range: refer to datasheet; Input:10-30V dc Not applicable - No outputs 6 in Pigtail QD Connector; Cable Length (m) : 0.15; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Laser Emitter; Housing Style : Barrel; Primary Housing Material : Aluminum; Small Visible Spot : Laser; Laser Classification : Class 2; Max Sensing Distance (mm) : 30000; Quick Disconnect Type : M8 (Pico); Max Op. Temp. (°C) : 40; Sensing Beam Wavelength : 650; Repeatability (µs) : 30; Number of Pins : 3; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 12; Opposed Mode Emitter/Receiver : Emitter; Feature: Quick Disconnect : Yes

Type

M12

Lens material

Acrylic

Sensing beam

Visible Red Laser

Connection

Pigtail QD

Typical response time

30 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
