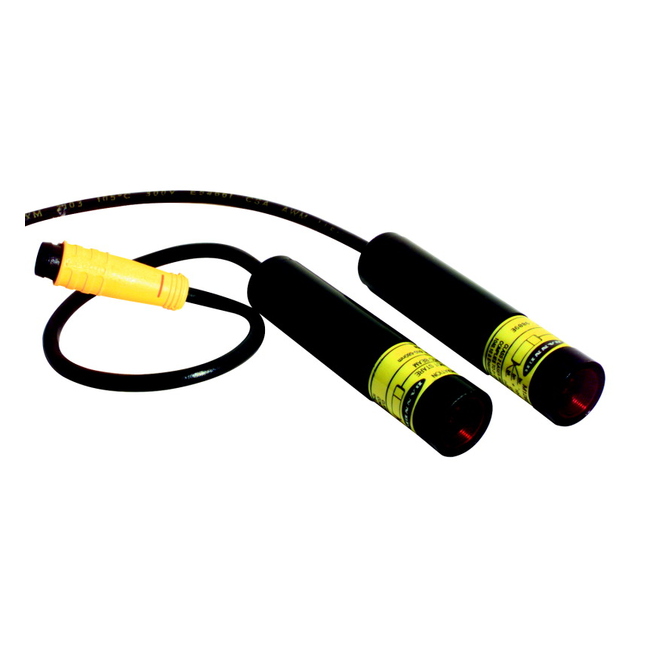

M126E1LDQ BANNER ⍾ 53810

M12 Aluminum Barrel Laser Emitter; M12 Laser: Class 1 Emitter Range: refer to datasheet; Input:10-30 V dc Output: Not applicable - No outputs Pico M8 3-pin Pigtail QD; Cable Length (m) : 0.15; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Laser Emitter; Housing Style : Barrel; Primary Housing Material : Aluminum; Small Visible Spot : Laser; Laser Classification : Class 1; Max Sensing Distance (mm) : 30000; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 60; Sensing Beam Wavelength : 650; Repeatability (µs) : 36; Number of Pins : 3; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 40°C; Barrel Diameter (mm) : 12; Opposed Mode Emitter/Receiver : Emitter; Feature: Quick Disconnect : Yes

Type

M12

Lens material

Acrylic

Sensing beam

Visible Red Laser

Connection

Pigtail QD

Typical response time

30 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
