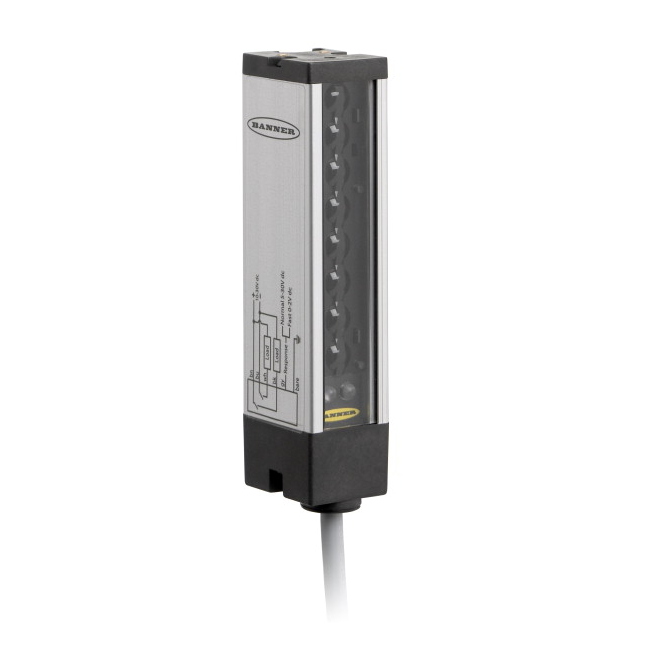

LX6ESR BANNER ⍾ 02671

LX Series Small and Flat Object Detection; LX Series: Emitter; Short Range Range: Normal 100 to 200 mm; input 10-30V dc Output: No output 2 m (6.5 ft) Cable; Housing Style : Array; Primary Housing Material : Aluminum; Slot Depth/Array Length (mm) : 143; Minimum Object Detection (mm) : 5.6; Quick Disconnect Type : No QD; Slot Overall Depth (mm) : 25.4; Slot Overall Depth (mm) : 31.8; Output response time (ms) : 1.6 ON/7 OFF; Max Op. Temperature (°C) : 70; Min Op. Temperature (°C) : -20; Max Op. Relative Humidity (%) : 90% @ 50°C; Minimum Object Detection [mm] : 5.6

Type

LX Series Small and Flat Object Detection

Lens material

Acrylic

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP65
