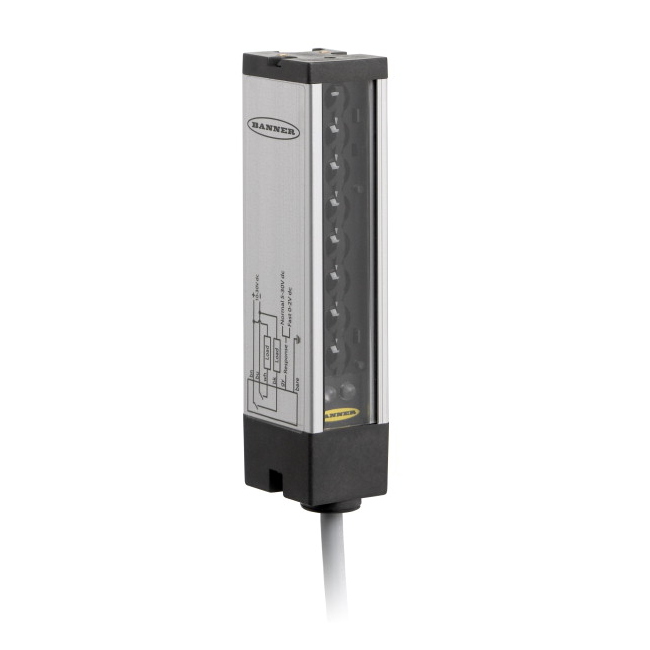

LX12RSR BANNER ⍾ 02689

LX Series Small and Flat Object Detection; LX Series: Receiver; Short Range Range: Normal 100 to 200 mm; input 10-30V dc Output: Bipolar: 1 NPN; 1 PNP 2 m (6.5 ft) Cable; Housing Style : Array; Primary Housing Material : Aluminum; Slot Depth/Array Length (mm) : 295; Minimum Object Detection (mm) : 5.6; Quick Disconnect Type : No QD; Outputs : Bipolar (NPN & PNP); Slot Overall Depth (mm) : 25.4; Slot Overall Depth (mm) : 31.8; Output response time (ms) : 3.2 ON/8.5 OFF; Operation : Dark Operate; Max Op. Temperature (°C) : 70; Min Op. Temperature (°C) : -20; Max Op. Relative Humidity (%) : 90% @ 50°C; Minimum Object Detection [mm] : 5.6

Type

LX Series Small and Flat Object Detection

Lens material

Acrylic

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP65
