EA5R750PIXMODSRLCQ BANNER ⍾ 80687

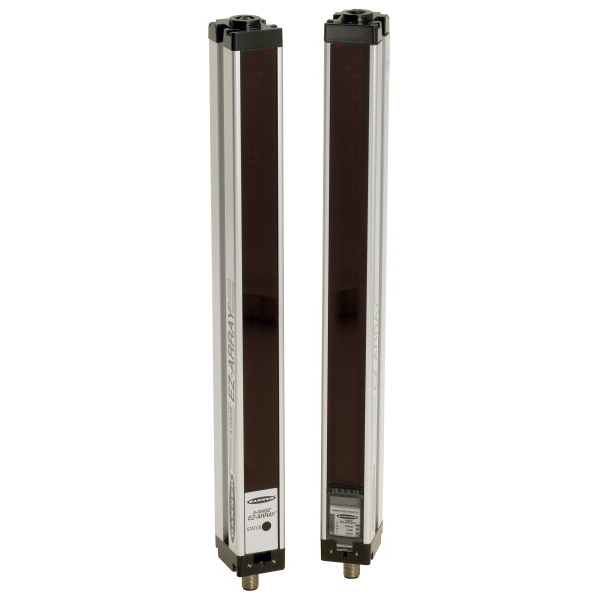

EZ-Array Series Measuring Light Curtain; EZ-ARRAY Short Range Low Contrast Receiver: 750 mm Range: (matching emitter sold separately) 30 mm - 1500 mm; Input: Outputs: 2 Solid-State PNP 2 Analog 4-20 mA EIA-4Euro 8-pin Quick-Disconnect; Sensing Mode (Detailed) : Receiver; Device Type : Two-Piece; Primary Housing Material : Aluminum; Beam Spacing : 5 mm; Modbus RTU : Yes; RS-485 : Yes; Analog Output : Current (4-20 mA); Number of Beams : 150; Min Temp (°C) : -40; Housing Length (mm) : 828; Array Length (mm) : 750; Max Temp (°C) : 70; Minimum Object Sensitivity (mm) : 5-10; Discrete Output : PNP; Emitter/Receiver Range (m) : 0.3 - 1.5; Max Relative Humidity : 95%; Power Supply : 12-30 V dc

Type

EZ-Array
