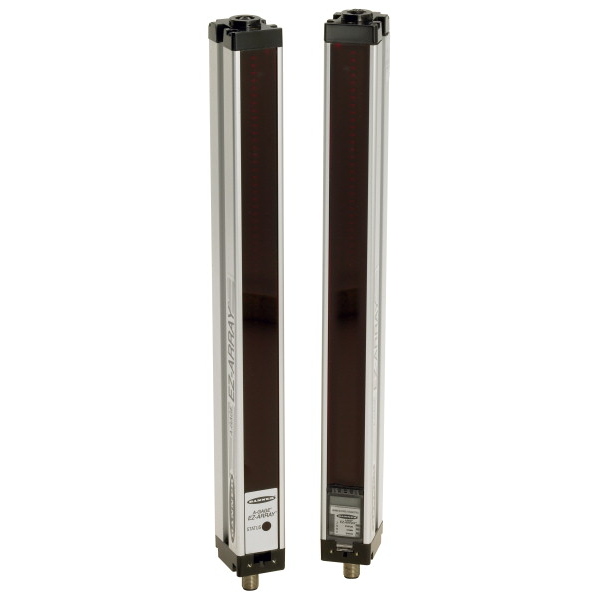

EA5R600PIXMODSRQ BANNER ⍾ 83349

EZ-Array Series Measuring Light Curtain; EZ-ARRAY Short Range Receiver:600mm Range 30-1500 mm;Input 12-30V dc Output 2 PNP Discrete; Output 2 4 -20ma Analog; EIA-485QD 8 pin Euro; 5 pin Euro; Sensing Mode (Detailed) : Receiver; Device Type : Two-Piece; Primary Housing Material : Aluminum; Beam Spacing : 5 mm; Modbus RTU : Yes; RS-485 : Yes; Analog Output : Current (4-20 mA); Number of Beams : 120; Min Temp (°C) : -40; Housing Length (mm) : 678; Array Length (mm) : 600; Max Temp (°C) : 70; Minimum Object Sensitivity (mm) : 5-10; Discrete Output : PNP; Emitter/Receiver Range (m) : 0.3 - 1.5; Max Relative Humidity : 95%; Power Supply : 12-30 V dc

Type

EZ-Array
