EA5R450PUXMODSRLCQ BANNER

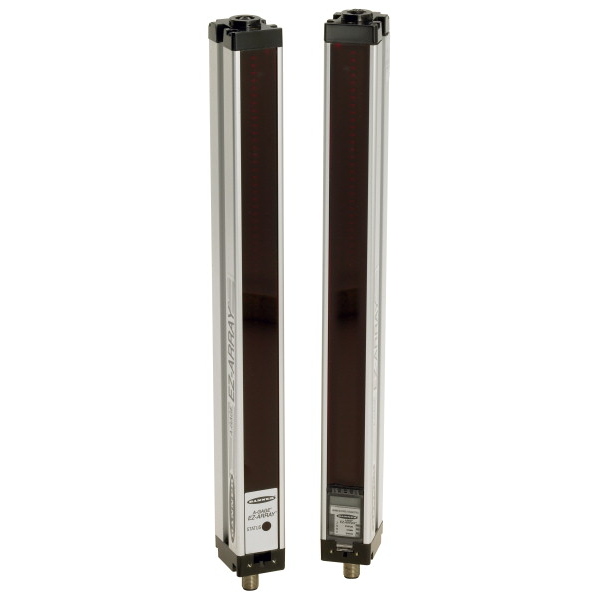

EZ-Array Series Measuring Light Curtain; EZ-ARRAY Short Range Receiver:450 mm Range 30-1500 mm; Input 12-30 V dc Output 2 PNP Discrete; 0 -10 V Analog; EIA-485 Euro 8-pin QD; Short Range : Yes; Low Contrast : Yes; Device Type : Two-Piece; Primary Housing Material : Aluminum; Beam Spacing : 5 mm; Modbus RTU : Yes; RS-485 : Yes; Analog Output : Voltage (0-10 V); Number of Beams : 90; Min Temp (°C) : -40; Housing Length (mm) : 529; Max Temp (°C) : 70; Minimum Object Sensitivity (mm) : 5-10; Emitter/Receiver Range (m) : 0.3 - 1.5; Max Relative Humidity : 95%

Type

EZ-Array
