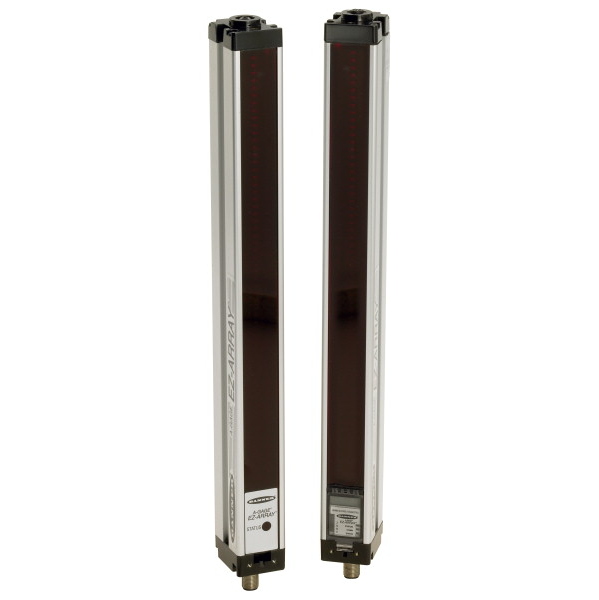

EA5R450PIXMODSRQ BANNER ⍾ 82051

EZ-Array Series Measuring Light Curtain; EZ-ARRAY Receiver: 450 mm (17.7 in.)Range: 30 mm - 1500 mm; Input: Outputs: 2 Solid-State PNP 2 Analog 4-20mA EIA-4Euro 8-Pin Quick-Disconnect; Short Range : Yes; Sensing Mode (Detailed) : Receiver; Device Type : Two-Piece; Primary Housing Material : Aluminum; Beam Spacing : 5 mm; Modbus RTU : Yes; RS-485 : Yes; Analog Output : Current (4-20 mA); Number of Beams : 90; Min Temp (°C) : -40; Housing Length (mm) : 529; Array Length (mm) : 450; Max Temp (°C) : 70; Minimum Object Sensitivity (mm) : 5-10; Discrete Output : PNP; Emitter/Receiver Range (m) : 0.3 - 1.5; Max Relative Humidity : 95%; Power Supply : 12-30 V dc

Type

EZ-Array
