EA5R2100NUXMODQ BANNER ⍾ 78937

This product has been marked as discontinued. Please ask for availability or replacement.

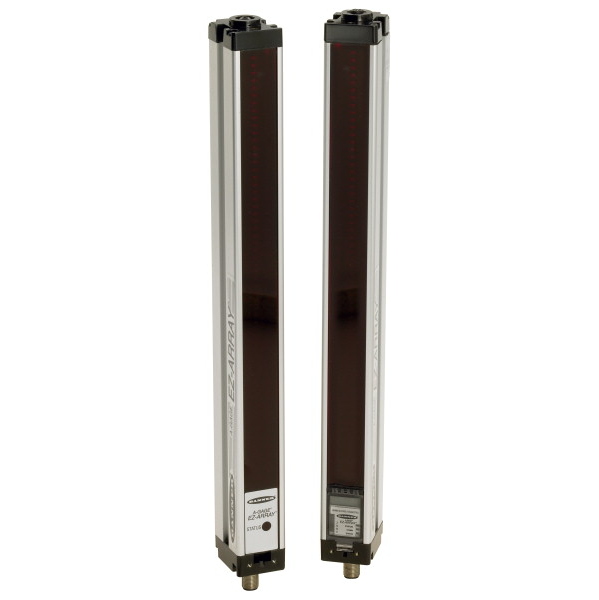

EZ-Array Series Measuring Light Curtain; EZ-ARRAY Receiver: 2100mm (82.7 in.)Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc Outputs: 2 Solid-State NPN 2 Analog 0-10 V EIA-485Euro 8-pin Quick-Disconnect; Sensing Mode (Detailed) : Receiver; Device Type : Two-Piece; Primary Housing Material : Aluminum; Beam Spacing : 5 mm; Modbus RTU : Yes; RS-485 : Yes; Number of Beams : 420; Min Temp (°C) : -40; Housing Length (mm) : 2178; Max Temp (°C) : 70; Array Length (mm) : 2100; Discrete Output : NPN; Analog Output : Voltage (0-10 V); Emitter/Receiver Range (m) : 0.4 - 4; Max Relative Humidity : 95%; Power Supply : 12-30 V dc; Minimum Object Sensitivity (mm) : 5-10

Type

EZ-Array
