EA5R150PIXMODQ BANNER ⍾ 77527

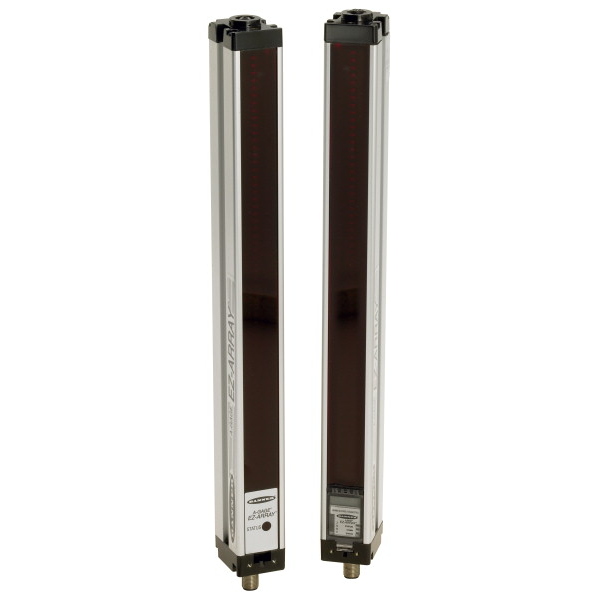

EZ-Array Series Measuring Light Curtain; EZ-ARRAY Receiver: 150 mm (5.9 in.)Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc Outputs: 2 Solid-State PNP 2 Analog 4-20 mA EIA-4Euro 8-pin Quick-Disconnect; Sensing Mode (Detailed) : Receiver; Device Type : Two-Piece; Primary Housing Material : Aluminum; Beam Spacing : 5 mm; Modbus RTU : Yes; RS-485 : Yes; Analog Output : Current (4-20 mA); Number of Beams : 30; Min Temp (°C) : -40; Housing Length (mm) : 227; Array Length (mm) : 150; Max Temp (°C) : 70; Minimum Object Sensitivity (mm) : 5-10; Discrete Output : PNP; Emitter/Receiver Range (m) : 0.4 - 4; Max Relative Humidity : 95%; Power Supply : 12-30 V dc

Type

EZ-Array
