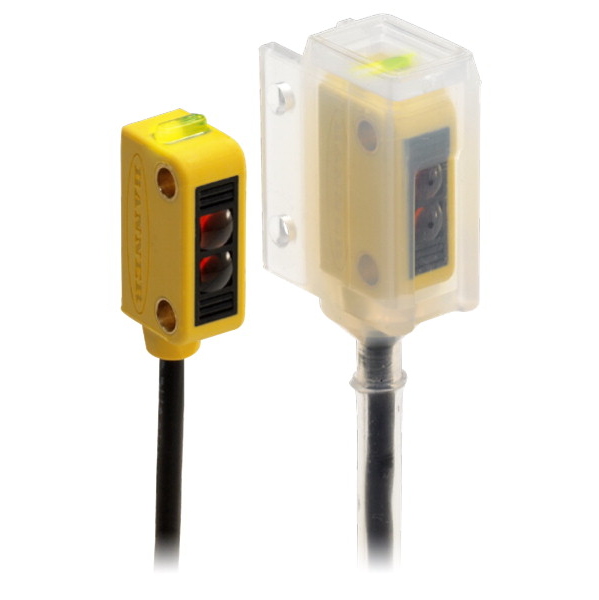

DQ12AB6FF50 BANNER ⍾ 32105

DQ12 Series Miniature Photoelectric Sensor; WORLD-BEAM DQ12 Series: Fixed-Field Range: 50 mm; Input: 10-30V dc Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP2 m (6.5 ft) Cable; Black Housing; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular; Primary Housing Material : Polyamide; Small Visible Spot : LED; Input/Output : Discrete; Max Sensing Distance (mm) : 50; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Operation : Light Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 0.85 ON/OFF; Sensing Beam Wavelength : 645; Repeatability (µs) : 125; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 50°C

Type

DQ12

Lens material

Polycarbonate

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

120 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
