BANNER DF-G2-PS-Q3

DF-G2-PS-Q3 BANNER

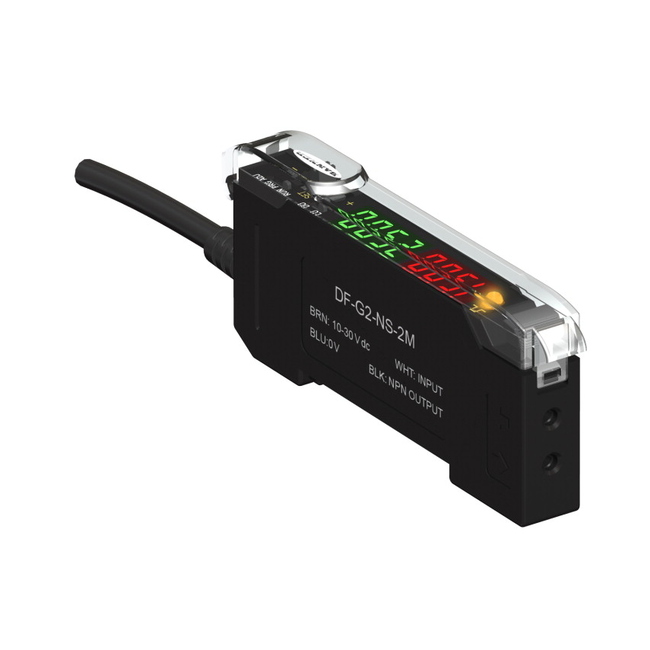

DF-G2 Series High Speed Fiber Optic Amplifier; DF-G2 Red Beam High Speed Dual Display Fiber Amplifier Range: Depends on fiber; Input 10-30 V dc Outputs: 1 PNPConnection: Pico M8 4-pin 150 mm PVC Pigtail; Cable Length (m) : 0.15; Housing Style : DIN Rail; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Color LED - Amplifiers : Red; Fiber Type : Plastic and Glass; Quick Disconnect Type : M8 (Pico); Output Type (Specific) : Single Discrete; Repeatability (µs) : 5 to 165; Number of Pins : 4; NEMA Rating : NEMA 1; Max Op. Temperature (°C) : 55; Min Op. Temperature (°C) : -10; Max Op. Relative Humidity (%) : 90% @ 60°C; Special Feature: Remote Teach : Yes; Crosstalk Avoidance : Yes; Adjustments : Teach Button; Indicator Display Type : Dual Digital Displays; Minimum response time (ms) : .01; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes; Application: Registration Mark : Yes; Housing Material : Thermoplastic; EPLAN Cabinet Installable : Yes

Typical response time
500 ms
Power supply
10-30 V dc
Power supply type
DC
Degree of protection
IP50
