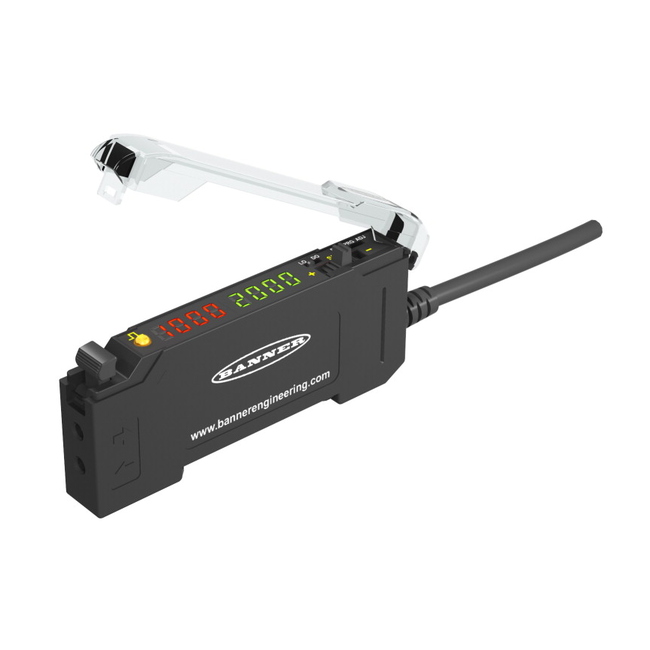

DF-G1-NS-2M BANNER ⍾ 19350

DF-G1 Series General Purpose Fiber Optic Amplifier; DF-G1 Dual Display Fiber Amplifier Range: Depends on fiber; Input 10-30 V dc Output: 1 NPN2 m (6.5 ft.) Cable; Cable Length (m) : 2; Housing Style : DIN Rail; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Color LED - Amplifiers : Red; Fiber Type : Plastic and Glass; Quick Disconnect Type : No QD; Output Type (Specific) : Single Discrete; Repeatability (µs) : 66 to 100; Number of Pins : 4; NEMA Rating : NEMA 1; Max Op. Temperature (°C) : 55; Min Op. Temperature (°C) : -10; Max Op. Relative Humidity (%) : 90% @ 60°C; Special Feature: Remote Teach : Yes; Crosstalk Avoidance : Yes; Adjustments : Teach Button; Indicator Display Type : Dual Digital Displays; Minimum response time (ms) : .2; Feature: Timing (Hold/Delay) : Yes; Housing Material : Thermoplastic; EPLAN Cabinet Installable : Yes

Type

DF-G1

Connection

Cable

Typical response time

500 ms

Power supply

10-30 V dc

Power supply type

DC

Degree of protection

IP50
