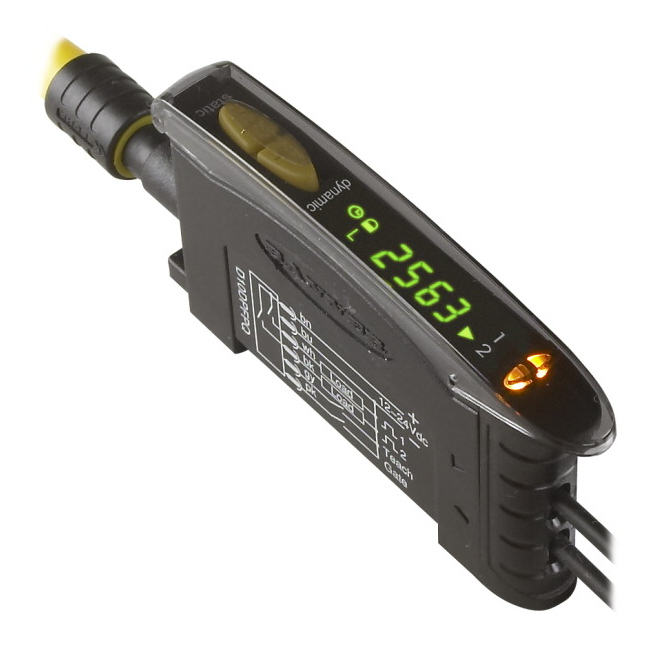

D10UNFP BANNER ⍾ 63992

D10 Series High Performance Fiber Optic Sensing; D10 Expert: Red Beam Plastic Fiber Range: depends on the fiber; Input: 15-24 V dc Output: NPN 0-10 V dc 2 m (6.5 ft.) Cable; Cable Length (m) : 2; Housing Style : DIN Rail; Primary Housing Material : Thermoplastic; Input/Output : Analog & Discrete; Color LED - Amplifiers : Red; Fiber Type : Plastic and Glass; Quick Disconnect Type : No QD; Output Type (Specific) : Analog & Discrete; Repeatability (µs) : 25 to 100; Number of Pins : 6; NEMA Rating : NEMA 1; Max Op. Temperature (°C) : 55; Min Op. Temperature (°C) : -10; Max Op. Relative Humidity (%) : 90% @ 50°C; Special Feature: Remote Teach : Yes; Crosstalk Avoidance : Yes; Adjustments : Teach Button; Indicator Display Type : Single Digital Display; Minimum response time (ms) : .05; Analog Output : 0 to 10 V dc; Feature: Timing (Hold/Delay) : Yes; Housing Material : Thermoplastic; EPLAN Cabinet Installable : Yes

Type

D10

Connection

Cable

Typical response time

1000 ms

Power supply

15-24 V dc

Power supply type

DC

Degree of protection

IP50
