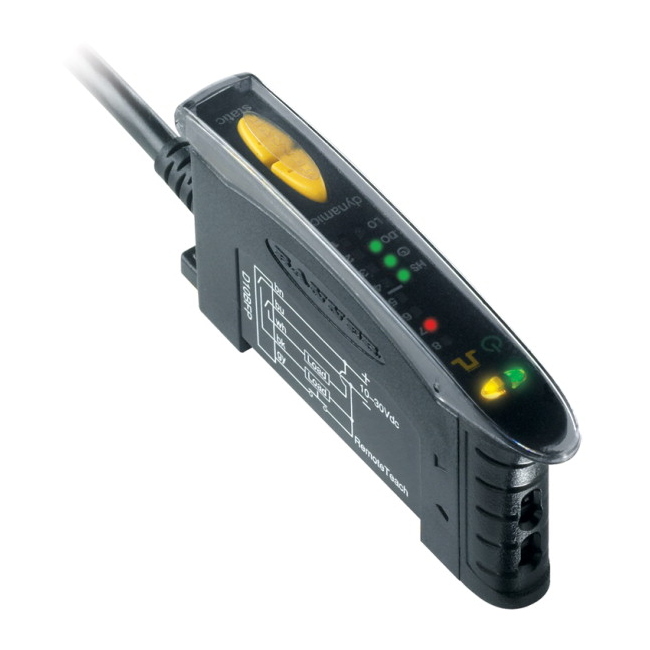

D10BFPG BANNER ⍾ 72616

D10 Series High Performance Fiber Optic Sensing; D10BFPG 2M Cable 5 WIRE GREEN; Cable Length (m) : 2; Housing Style : DIN Rail; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Color LED - Amplifiers : Green; Fiber Type : Plastic and Glass; Output : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Output Type (Specific) : Single Discrete; Repeatability (µs) : 66 to 100; Number of Pins : 5; NEMA Rating : NEMA 1; Max Op. Temperature (°C) : 55; Min Op. Temperature (°C) : -20; Max Op. Relative Humidity (%) : 90% @ 55°C; Special Feature: Remote Teach : Yes; Crosstalk Avoidance : Yes; Adjustments : Teach Button; Indicator Display Type : Bargraph; Minimum response time (ms) : .2; Feature: Timing (Hold/Delay) : Yes; Housing Material : Thermoplastic

Type

D10

Connection

Cable

Typical response time

200 ms

Power supply

10-30 V dc

Power supply type

DC

Degree of protection

IP50
