D10AFP W/30 BANNER ⍾ 73119

This product has been marked as discontinued. Please ask for availability or replacement.

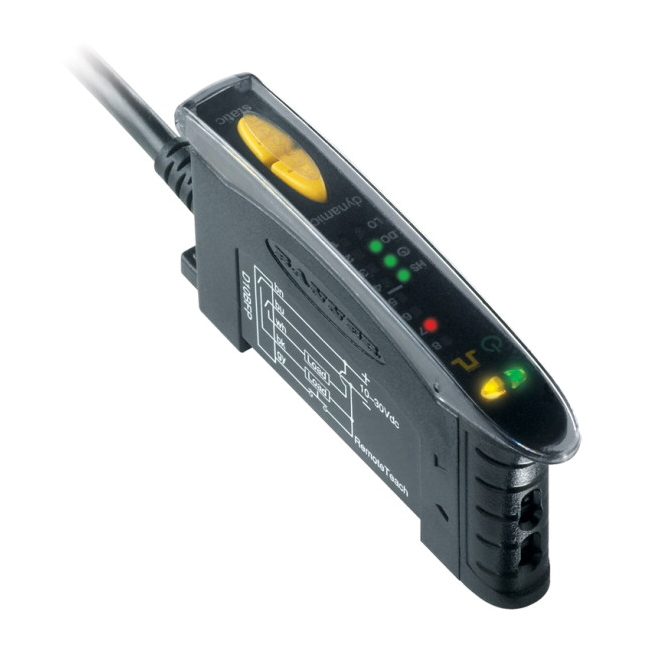

D10 Series High Performance Fiber Optic Sensing; D10AFP Sensor for use with Plastic Fiber Optics Range: Depends on Fiber; Input 10 -30 V dc;Output: Bipolar 9 m (30 ft) Cable; Cable Length (m) : 9; Housing Style : DIN Rail; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Color LED - Amplifiers : Red; Fiber Type : Plastic and Glass; Quick Disconnect Type : No QD; Output Type (Specific) : Single Discrete; Repeatability (µs) : 95; Number of Pins : 4; NEMA Rating : NEMA 1; Max Op. Temperature (°C) : 55; Min Op. Temperature (°C) : -20; Max Op. Relative Humidity (%) : 90% @ 55°C; Crosstalk Avoidance : Yes; Adjustments : Potentiometer; Indicator Display Type : Indicator LEDs; Minimum response time (ms) : .5; Feature: Timing (Hold/Delay) : Yes; Housing Material : Thermoplastic

Type

D10

Connection

Cable

Typical response time

100 ms

Power supply

10-30 V dc

Power supply type

DC

Degree of protection

IP50
