BMRL616A BANNER ⍾ 39920

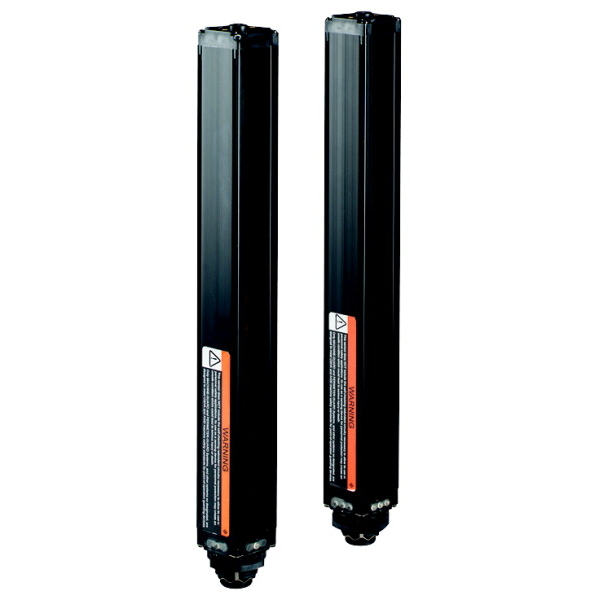

MINI-ARRAY Series Measuring Light Curtain; MINI-ARRAY: Receiver Sensor 143mm (5.6 in.)Beam Spacing: 19mm (0.75 in.); Total Beams = 8System Range (w/ matching emitter) = 0.9 to 17m System Requires 2 Quick-Disconnect Cables; Sensing Mode (Detailed) : Receiver; Device Type : Three-Piece; Primary Housing Material : Aluminum; Number of Beams : 8; Min Temp (°C) : -20; Housing Length (mm) : 201; Array Length (mm) : 133; Max Temp (°C) : 70; Minimum Object Sensitivity (mm) : 25.4-38.1; Emitter/Receiver Range (m) : 0.9 - 16.5; Max Relative Humidity : 95%; Power Supply : 12 V dc

Type

MINI-ARRAY
