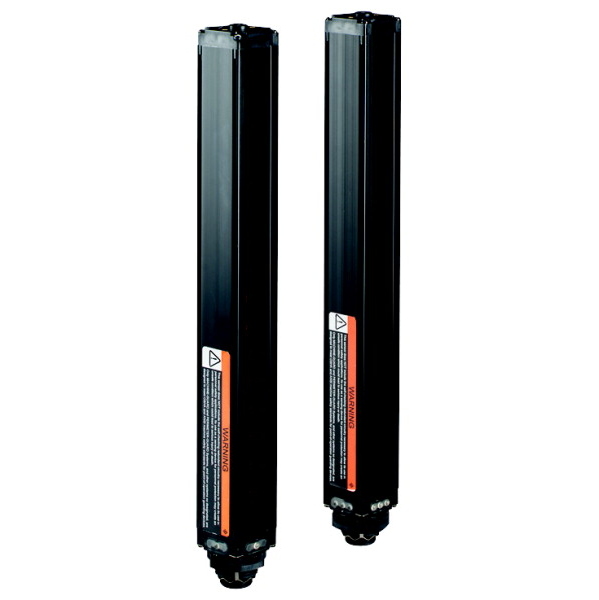

BMRL3632A BANNER ⍾ 38534

MINI-ARRAY Series Measuring Light Curtain; MINI-ARRAY: Receiver Sensor 905mm (35.6 in.)Beam Spacing: 9.5mm (0.38 in.); Total Beams = 96System Range (w/ matching emitter) = 0.6 to 6.1m System Requires 2 Quick-Disconnect Cables; Sensing Mode (Detailed) : Receiver; Device Type : Three-Piece; Primary Housing Material : Aluminum; Number of Beams : 96; Min Temp (°C) : -20; Housing Length (mm) : 963; Array Length (mm) : 905; Max Temp (°C) : 70; Minimum Object Sensitivity (mm) : 12.7-19.1; Emitter/Receiver Range (m) : 0.6 - 6.1; Max Relative Humidity : 95%; Power Supply : 12 V dc

Type

MINI-ARRAY
