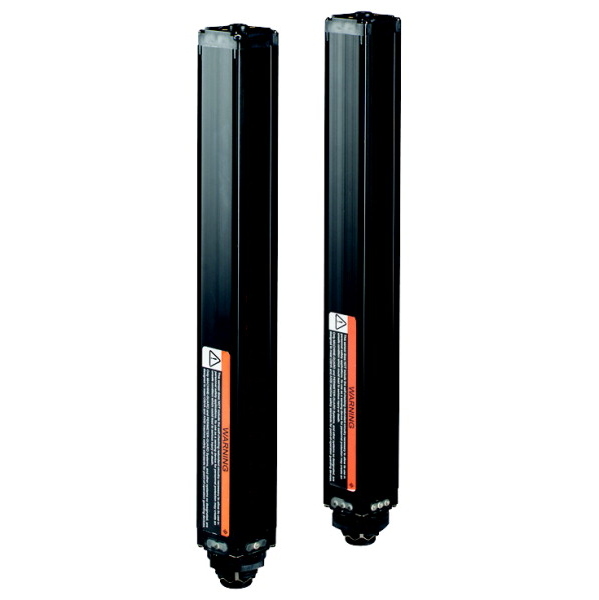

BMEL632A BANNER ⍾ 39921

MINI-ARRAY Series Measuring Light Curtain; MINI-ARRAY: Emitter Sensor 143mm (5.6 in.)Beam Spacing: 9.5mm (0.38 in.); Total Beams = 16System Range (w/ matching receiver) = 0.9 to 17m System Requires 2 Quick-Disconnect Cables; Sensing Mode (Detailed) : Emitter; Device Type : Three-Piece; Primary Housing Material : Aluminum; Number of Beams : 16; Min Temp (°C) : -20; Housing Length (mm) : 201; Array Length (mm) : 143; Max Temp (°C) : 70; Minimum Object Sensitivity (mm) : 12.7-19.1; Emitter/Receiver Range (m) : 0.6 - 6.1; Max Relative Humidity : 95%; Power Supply : 12 V dc

Type

MINI-ARRAY
