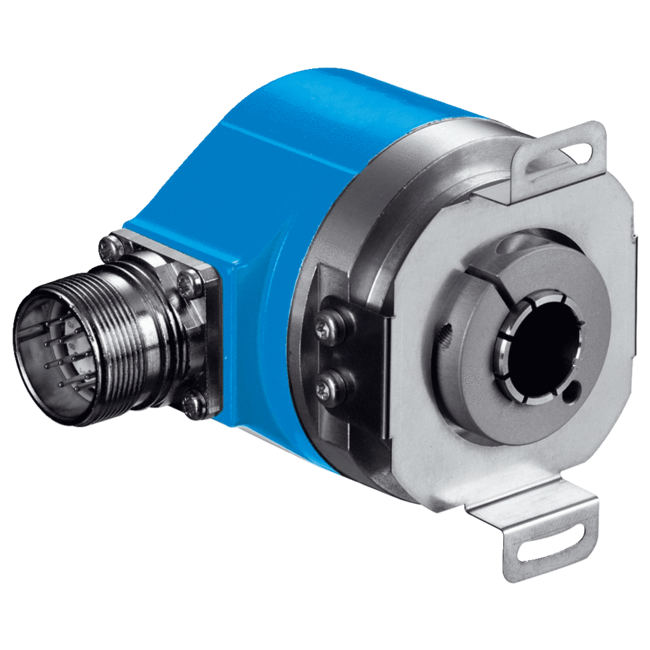

ARS60-FAA00042 SICK1221875ARS60FAA00042

Performance: Number of steps per revolution (max. resolution): 42; Error limits G: 0.035° (binary number of steps) 1)0.046° (non-binary number of steps); Repeatability standard deviation σr: 0.005° 2); Interfaces: Communication interface: Parallel data world; Initialization time: 80 ms 1); SSICode typeGrayCode sequence parameter adjustableCW (clockwise) increasing when viewing the clockwise rotating shaftRising: SSI; Electrical data: Connection type: Male connector, M23, 21-pin, radial; Supply voltage: 10 ... 32 V DC; Reverse polarity protection: ✔; Short-circuit protection: ✔; MTTFd: mean time to dangerous failure: 300 years (EN ISO 13849-1) 1); Mechanical data: Mechanical design: Blind hollow shaft; Shaft diameter: 15 mm 1); Weight: + 0.3 kg; Housing material: Aluminum die cast; Start up torque: + 0.6 Ncm; Operating torque: 0.4 Ncm; Permissible shaft movement, axial static/dynamic: ± 0.5 mm, ± 0.2 mm; Permissible shaft movement, radial static/dynamic: ± 0.3 mm, ± 0.1 mm; Bearing lifetime: 3.6 x 10^9 revolutions; Angular acceleration: ≤ 500,000 rad/s²; Ambient data: EMC: According to EN 61000-6-2 and EN 61000-6-3 1); Enclosure rating: IP65, with mating connector fitted (according to IEC 60529); Permissible relative humidity: 90 % (condensation of the optical scanning not permitted); Operating temperature range: –20 °C ... +85 °C; Storage temperature range: –40 °C ... +100 °C; Resistance to shocks: 50 g, 11 ms (according to EN 60068-2-27); Resistance to vibration: 20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6); Classifications: ECl@ss 5.0: 27270502; ECl@ss 5.1.4: 27270502; ECl@ss 6.0: 27270590; ECl@ss 6.2: 27270590; ECl@ss 7.0: 27270502; ECl@ss 8.0: 27270502; ECl@ss 8.1: 27270502; ECl@ss 9.0: 27270502; ETIM 5.0: EC001486; ETIM 6.0: EC001486; UNSPSC 16.0901: 41112113
