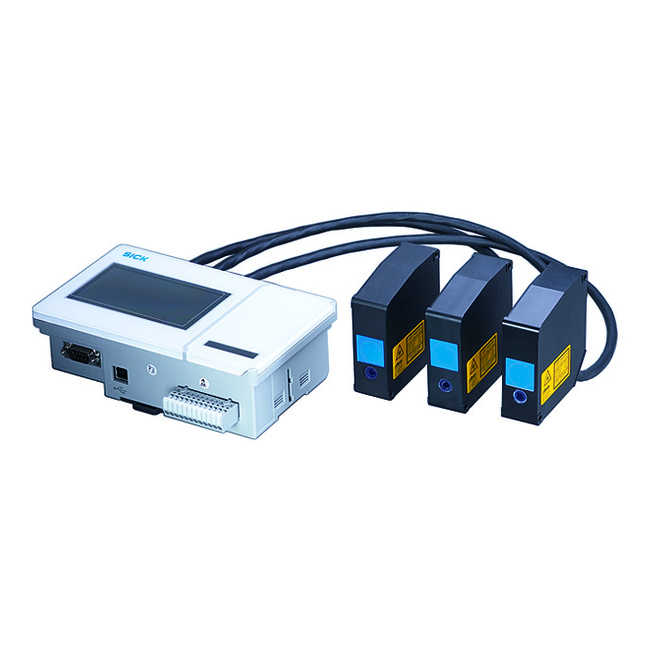

AOD5-P1 SICK ⍾ 6035985 ⍾ AOD5P1

OD Precision, RS-232USB. Data interface: 3 x -10 ... +10 V (≥ 10 kΩ), 3 x 4 mA ... 20 mA (≤ 300 Ω), RS-232, USB. Connection type: Terminal board. Housing material: Polycarbonat and …

OD Precision, RS-422. Data interface: RS-422. Linearity: ± 1.6 µm. Typ. light spot size (distance): 25 µm x 35 µm (25 mm). Resolution: 0.02 µm. Measuring range: 24 mm ... 26 mm, 6  …

OD Precision, RS-422. Data interface: RS-422. Linearity: ± 1.6 µm. Typ. light spot size (distance): 100 µm x 700 µm (25 mm). Resolution: 0.02 µm. Measuring range: 24 mm ... 26 mm,  …

OD Precision, RS-422. Data interface: RS-422. Linearity: ± 8 µm. Typ. light spot size (distance): 30 µm x 100 µm (30 mm). Resolution: 0.2 µm. Measuring range: 25 mm ... 35 mm, 6 %  …

OD Precision, RS-422. Data interface: RS-422. Linearity: ± 8 µm. Typ. light spot size (distance): 260 µm x 1,000 µm (30 mm). Resolution: 0.2 µm. Measuring range: 25 mm ... 35 mm, 6 …

OD Precision, RS-422. Data interface: RS-422. Linearity: ± 160 µm. Typ. light spot size (distance): 700 µm x 2,400 µm (350 mm). Resolution: 5 µm. Measuring range: 250 mm ... 450 mm …

OD Precision, RS-422. Data interface: RS-422. Linearity: ± 320 µm. Typ. light spot size (distance): 1,000 µm x 3,700 µm (500 mm). Resolution: 10 µm. Measuring range: 300 mm ... 700 …

OD Precision, RS-422. Data interface: RS-422. Linearity: ± 20 µm. Typ. light spot size (distance): 70 µm x 290 µm (85 mm). Resolution: 1 µm. Measuring range: 65 mm ... 105 mm, 6 %  …

OD Precision, RS-422. Data interface: RS-422. Linearity: ± 20 µm. Typ. light spot size (distance): 260 µm x 1,200 µm (85 mm). Resolution: 1 µm. Measuring range: 65 mm ... 105 mm, 6 …
