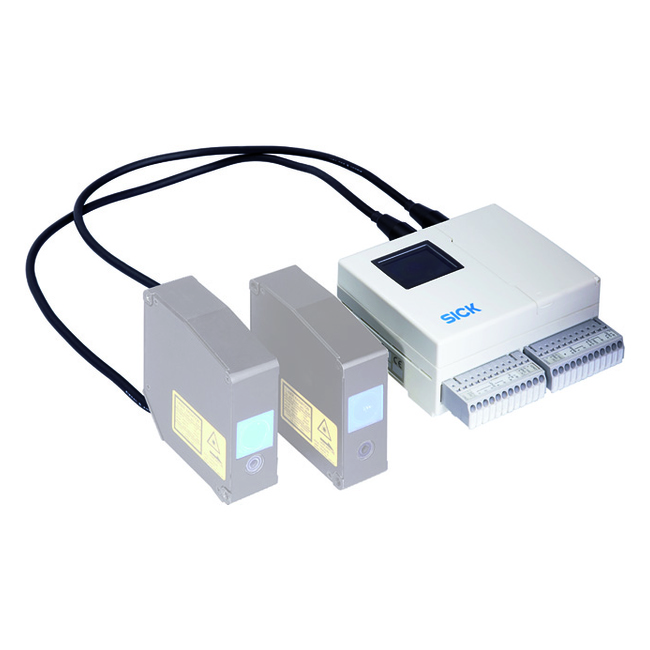

AOD-P1 SICK ⍾ 6028960 ⍾ AODP1

OD Max, RS-232. Data interface: 2 x -5 ... +5 V (≥ 1 kΩ), 2 x 4 mA ... 20 mA (≤ 300 Ω), RS-232. Connection type: Terminal board. Housing material: Polycarbonat and nylon 66.

OD Max, RS-232. Data interface: 2 x -5 ... +5 V (≥ 1 kΩ), 2 x 4 mA ... 20 mA (≤ 300 Ω), RS-232. Connection type: Terminal board. Housing material: Polycarbonat and nylon 66.

OD Max, RS-232. Data interface: 2 x -5 ... +5 V (≥ 1 kΩ), 2 x 4 mA ... 20 mA (≤ 300 Ω), RS-232. Connection type: Terminal board. Housing material: Polycarbonat and nylon 66.

OD Max. Linearity: ± 2 µm. Typ. light spot size (distance): 25 µm x 35 µm (25 mm). Resolution: 0.1 µm. Measuring range: 24 mm ... 26 mm, 6 % ... 90 % remission. Connection type: 0. …

OD Max. Linearity: ± 10 µm. Typ. light spot size (distance): 30 µm x 100 µm (30 mm). Resolution: 1 µm. Measuring range: 25 mm ... 35 mm, 6 % ... 90 % remission. Connection type: 0. …

OD Max. Linearity: ± 200 µm. Typ. light spot size (distance): 300 µm x 700 µm (350 mm). Resolution: 50 µm. Measuring range: 250 mm ... 450 mm, 6 % ... 90 % remission. Connection ty …

OD Max. Linearity: ± 40 µm. Typ. light spot size (distance): 70 µm x 290 µm (85 mm). Resolution: 5 µm. Measuring range: 65 mm ... 105 mm, 6 % ... 90 % remission. Connection type: 0 …
