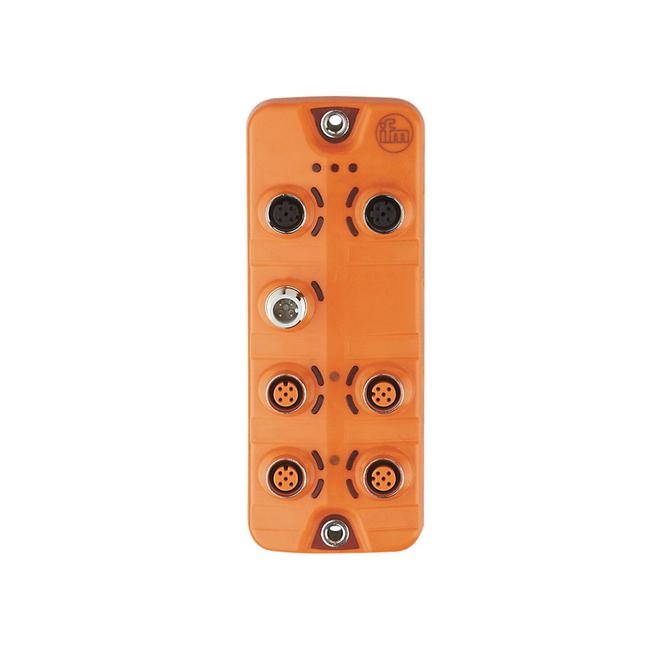

AL1120 ifm ⍾ IO-Link Master SL EIP 4P IP67
IO-Link master with EtherNet/IP interface; Protection class : III; Max. current load total [A] : 3.6; Total number of inputs and outputs : 8; (configurable); Number of digital inputs : 8; (IO-Link Port Class A: 4 x 2); Switching level high [V] : 11...30; Switching level low [V] : 0...5; Digital inputs protected against short circuits : yes; Number of digital outputs : 4; (IO-Link Port Class A: 4 x 1); Max. current load per output [mA] : 300; Short-circuit proof : yes; Communication interface : Ethernet; IO-Link; Transmission standard : 10Base-T; 100Base-TX; Transmission rate : 10; 100; Protocol : EtherNet/IP; Factory settings : IP address: 192.168.1.250 | subnet mask: 255.255.255.0 | gateway IP address: 0.0.0.0 | MAC address: see type label; Note on interfaces : DHCP, BOOTP, static | DLR (Device Level Ring) | Supported network topologies: line | ring; Transmission type : COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud); IO-Link revision : 1.1; Number of ports class A : 4; Ambient temperature [°C] : -25...60; Storage temperature [°C] : -25...85; Max. relative air humidity [%] : 90; Protection rating (NEMA 250) : 6P; Degree of soiling : 2; Chemical media : ISO 16750-5: AA, BA, BD, HLP, CC, DB, DC, DD, CA | NEMA 250 5.13.1: AA; Materials : housing: PA; socket: brass nickel-plated; Sealing material : FKM; IN / OUT X21, X22 : Connector: M12; Sealing: FKM; IO-Link Port Class A X01...X04 : Connector: M12; Sealing: FKM; X31 : Connector: M12
- Connection
- Connector: M12
- No. of inputs/outputs
- Number of digital inputs: 8; Number of digital outputs: 4
- Current consumption
- 300...3900; (US) mA
- Voltage supply
- 20...30; (via flat cable) V
- Display
- operation: LED, green | errors: LED, red | function: LED, yellow
- Degree of protection
- IP 65; IP 66; IP 67
- Weight
- 294.5 g
- Dimensions
- 45 x 82.5 x 33 mm
