AHM36A-S3QC014x12 SICK ⍾ 1101532 ⍾ AHM36AS3QC014X12

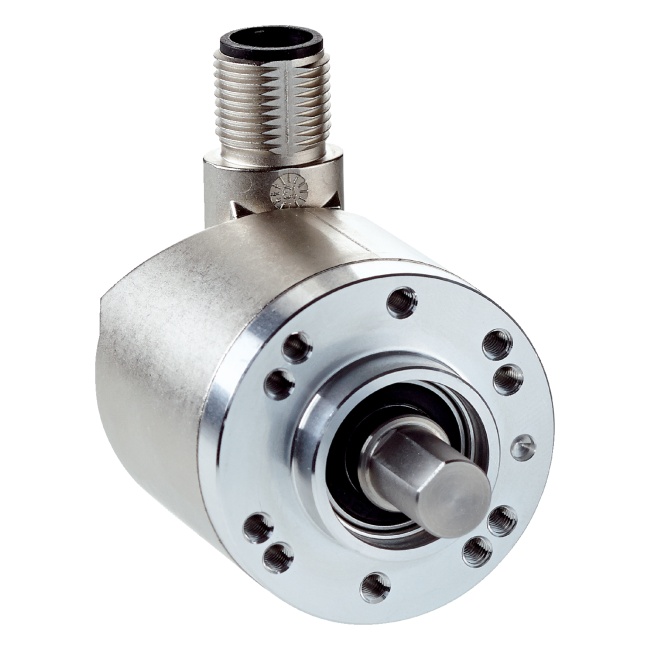

The AHS/AHM36 series absolute encoder, model AHM36A-S3QC014x12, offers both singleturn and multiturn functionality with a resolution of 14 bits x 12 bits (16,384 x 4,096). It features a solid shaft face mount flange design with dimensions of 6 mm x 12 mm. Communication is facilitated through IO-Link V1.1 and a universal M12, 4-pin male connector. Programming is supported via PLC-Engineering-Tool and SOPAS, enabling efficient communication, enhanced sensing, and diagnostics through its Smart Sensor capabilities.
- Type
- Absolute encoders
- Customs tariff number
- 90318020
- Expected origin
- DE
- Weight
- 0.18 kg
 |
AHM36A-S3QC014x12 Absolute Encoder Data Sheet (en) Size: 1001 KB |
Download |
